Radio and Telephone Control Switch Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

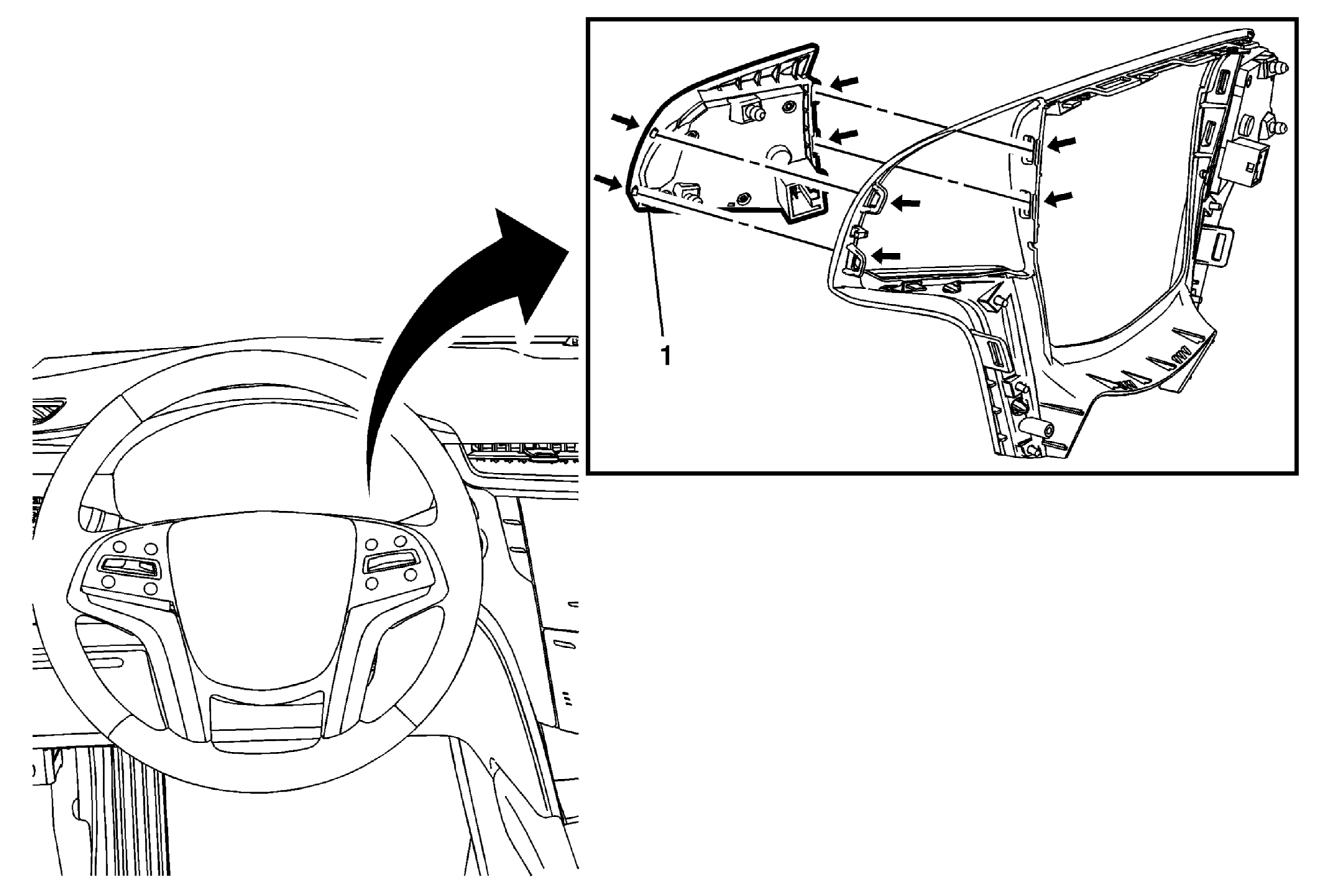

Fig 1: Radio and Telephone Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement . Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement .
1	Radio and Telephone Control Switch Procedure Use the appropriate tool to depress the tabs and release the switch from the cover.

Callout

Component Name

Preliminary Procedures

Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
Remove the steering wheel spoke cover. Refer to Steering Wheel Spoke Cover Replacement .

Radio and Telephone Control Switch
Procedure
Use the appropriate tool to depress the tabs and release the switch from the cover.
