Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

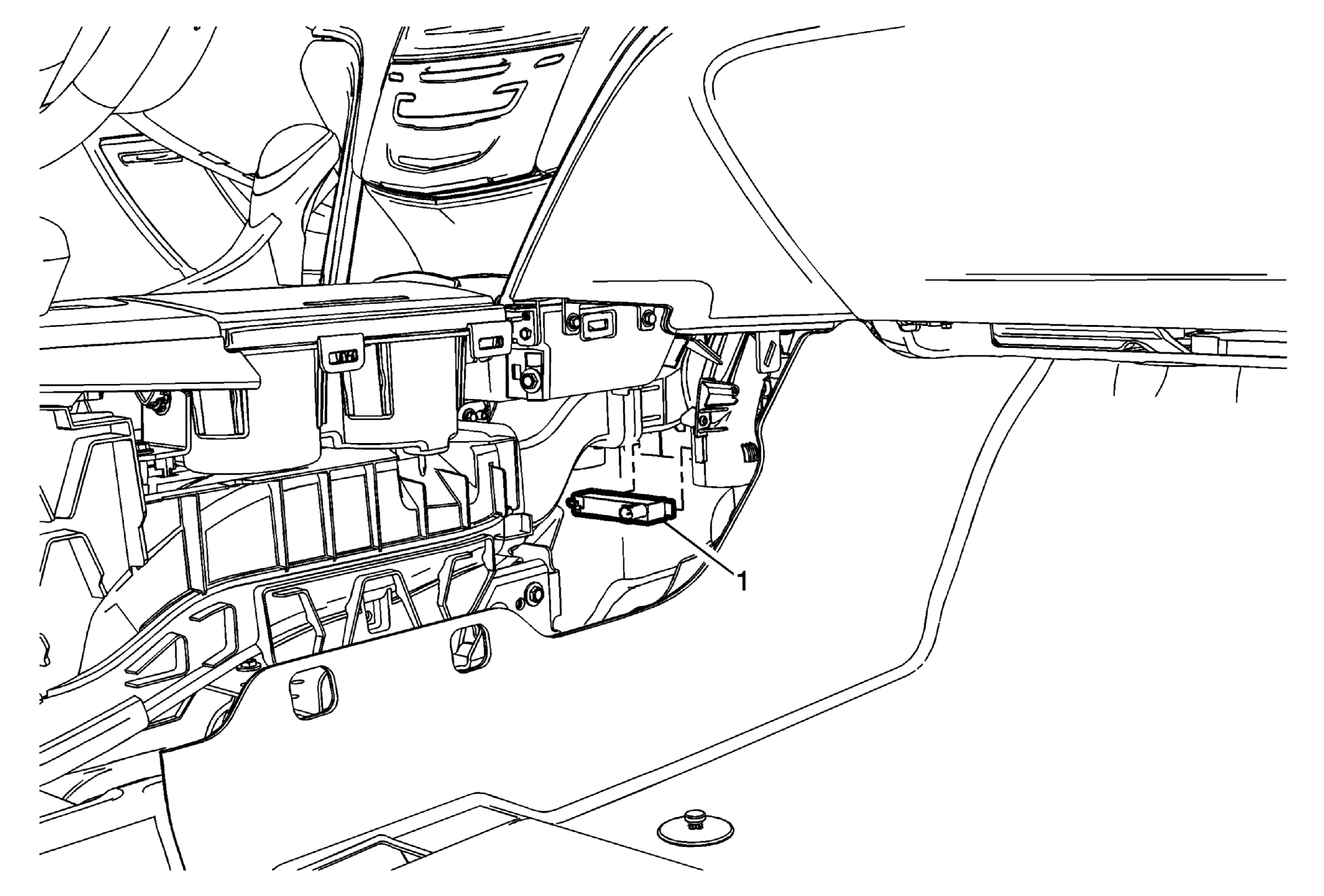

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console extension - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side . Reposition the front floor carpet as needed.
1	Ignition Lock Key Transmitter Antenna Assembly Procedure Reposition air duct as required. Disconnect the electrical connector. Unsnap antenna from the heater module.

Callout

Component Name

Preliminary Procedure

Remove the front floor console extension - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side .
Reposition the front floor carpet as needed.

Ignition Lock Key Transmitter Antenna Assembly

Procedure

Reposition air duct as required.
Disconnect the electrical connector.
Unsnap antenna from the heater module.
