Remote Control Door Lock Receiver Antenna Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

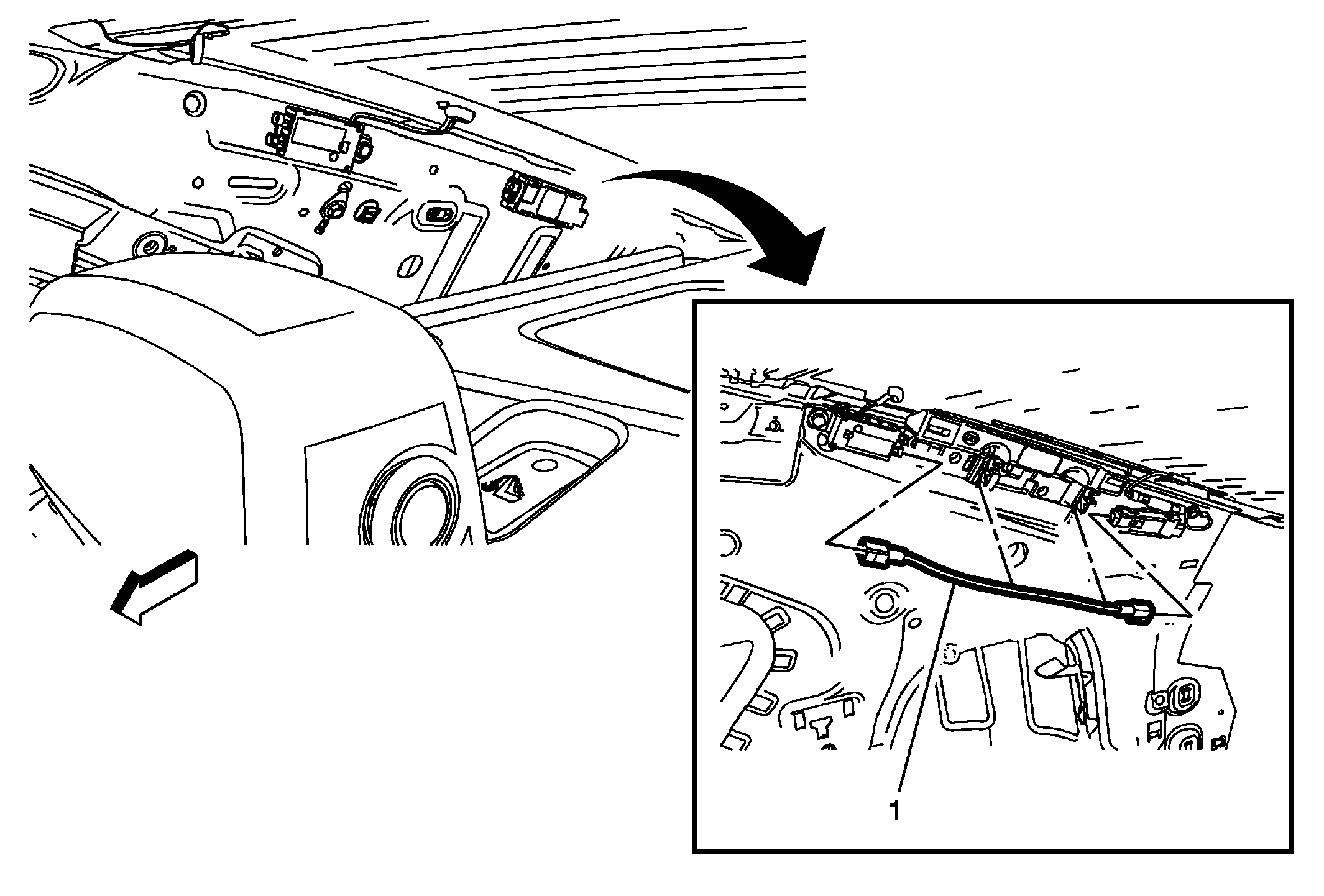

Fig 1: Remote Control Door Lock Receiver Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
1	Remote Control Door Lock Receiver Antenna Procedure Disconnect the antenna from the radio antenna amplifier and the remote control door lock receiver. Remove antenna from the trim panel bracket clips. If the cable is taped to the main harness, cut the ends of the old cable flush with the main harness and overlay and secure the new cable to the harness.

Callout

Component Name

Preliminary Procedure
Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .

Remote Control Door Lock Receiver Antenna

Procedure

Disconnect the antenna from the radio antenna amplifier and the remote control door lock receiver.
Remove antenna from the trim panel bracket clips.
If the cable is taped to the main harness, cut the ends of the old cable flush with the main harness and overlay and secure the new cable to the harness.
