Radio Control Assembly Replacement

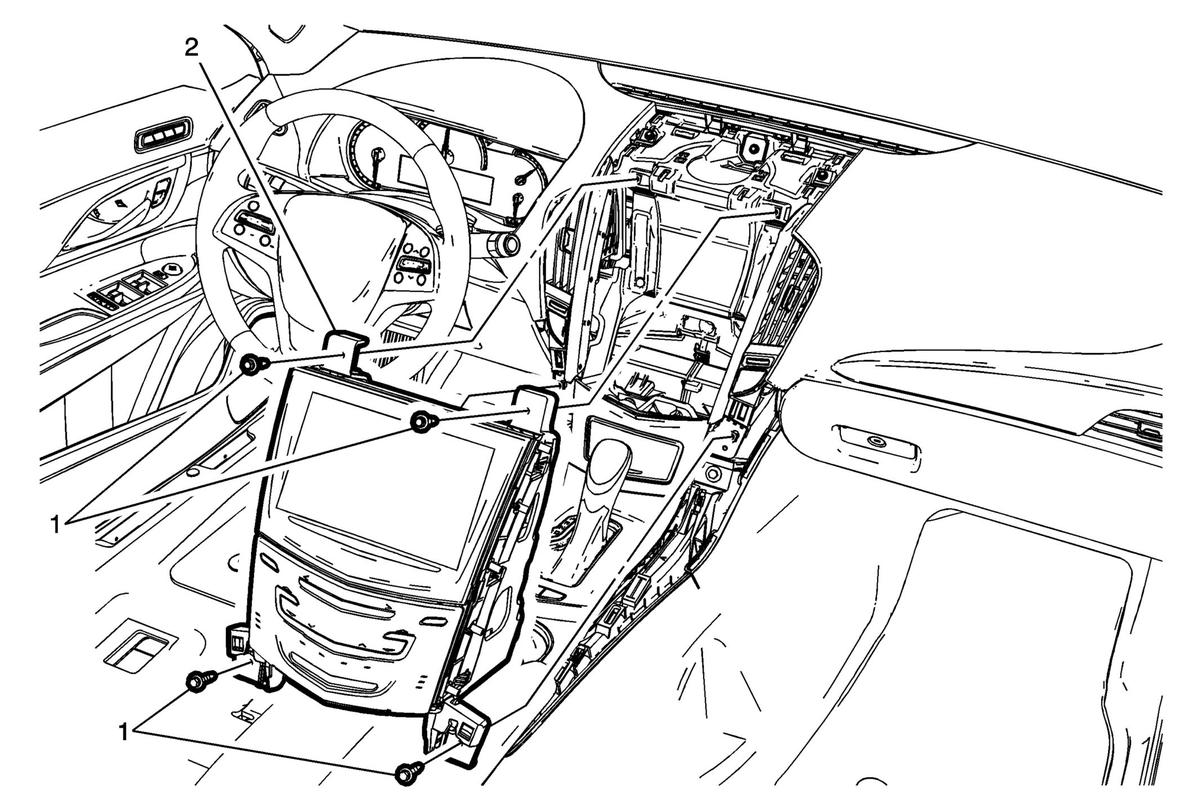

Fig 1: Radio Control Assembly

GM2830998

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the radio front center speaker grille. Refer to Radio Front Center Speaker Grille Replacement .
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .

1

Radio Control Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

2

Radio Control Assembly

Procedure

Disconnect the electrical connections.
When replacing the radio control assembly, transfer all necessary components.
Refer to Control Module References for programming and setup information.
