Shift Lock Control (MYA)

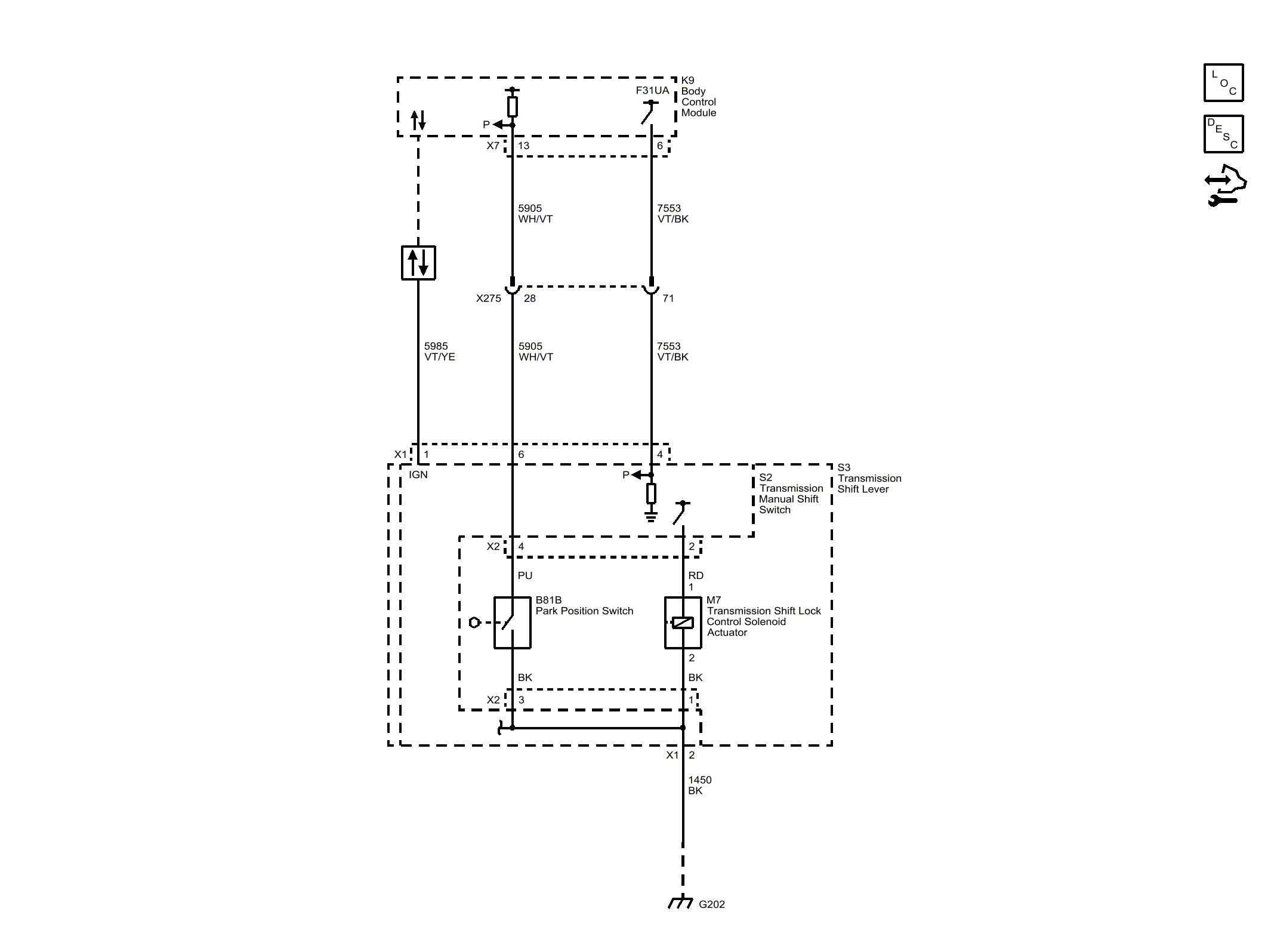

Fig 1: Shift Lock Control (MYA)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
