Left Side of Engine Compartment Components

Left Side of Engine Compartment Components

Items
1: M79 Windshield Wiper Motor Module M79 Windshield Wiper Motor Module
2: F100L Hood Hinge Actuator - Left F100L Hood Hinge Actuator - Left (B3T)
3: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
4: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor

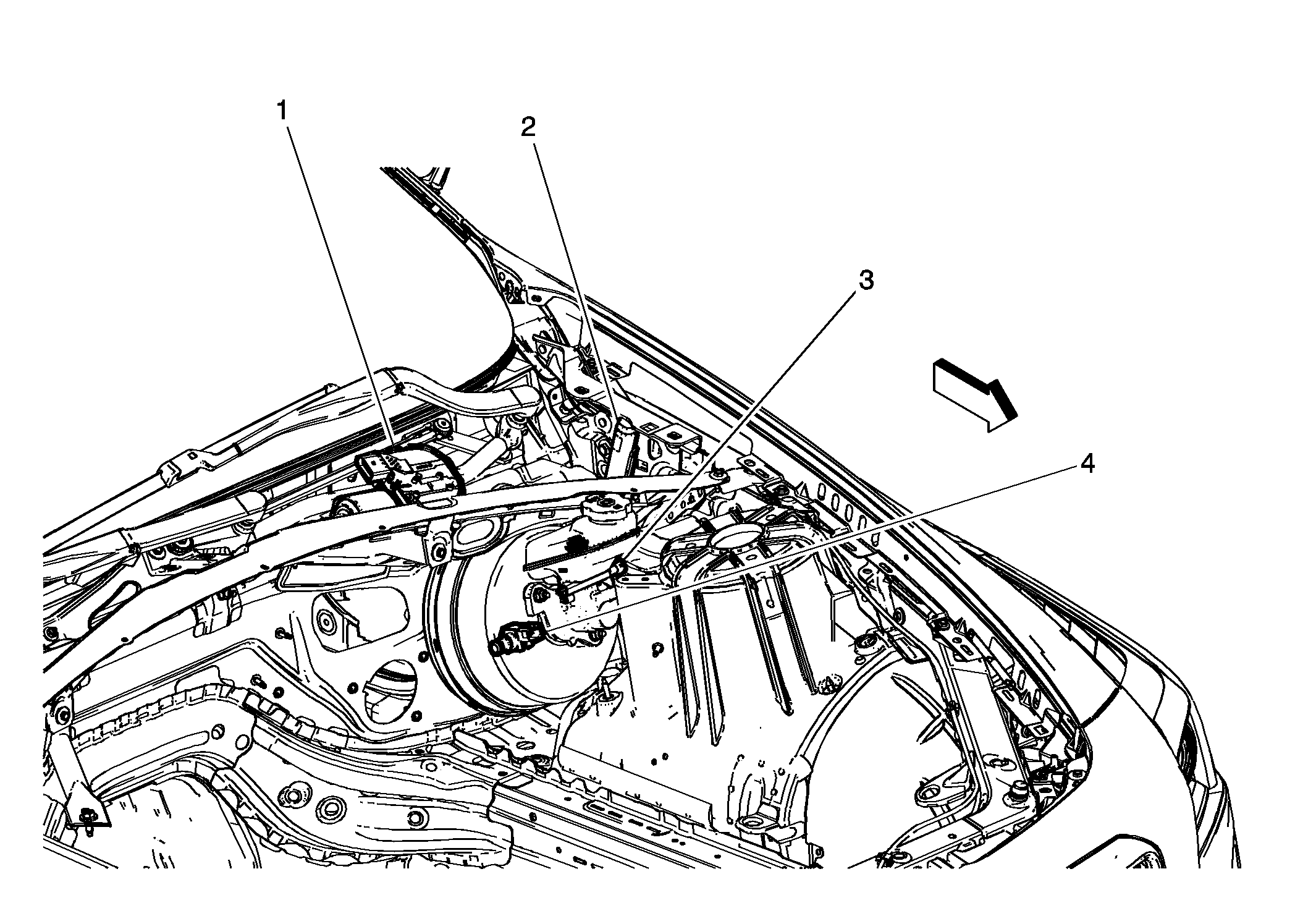

Fig 1: Left Side of Engine Compartment Components
GM3454970Courtesy of GENERAL MOTORS COMPANY
