Automatic Transmission (MYA) and Transfer Case (F46) Components - External (F46)

Automatic Transmission (MYA) and Transfer Case (F46) Components - External (F46)

Items
1: M71 Transfer Case Clutch (F46) M71 Transfer Case Clutch
2: B109 Transfer Case Fluid Temperature Sensor (F46) B109 Transfer Case Fluid Temperature Sensor
3: Q8 Control Solenoid Valve Assembly (MYA) Q8 Control Solenoid Valve Assembly X1Q8 Control Solenoid Valve Assembly X2 (MYA)

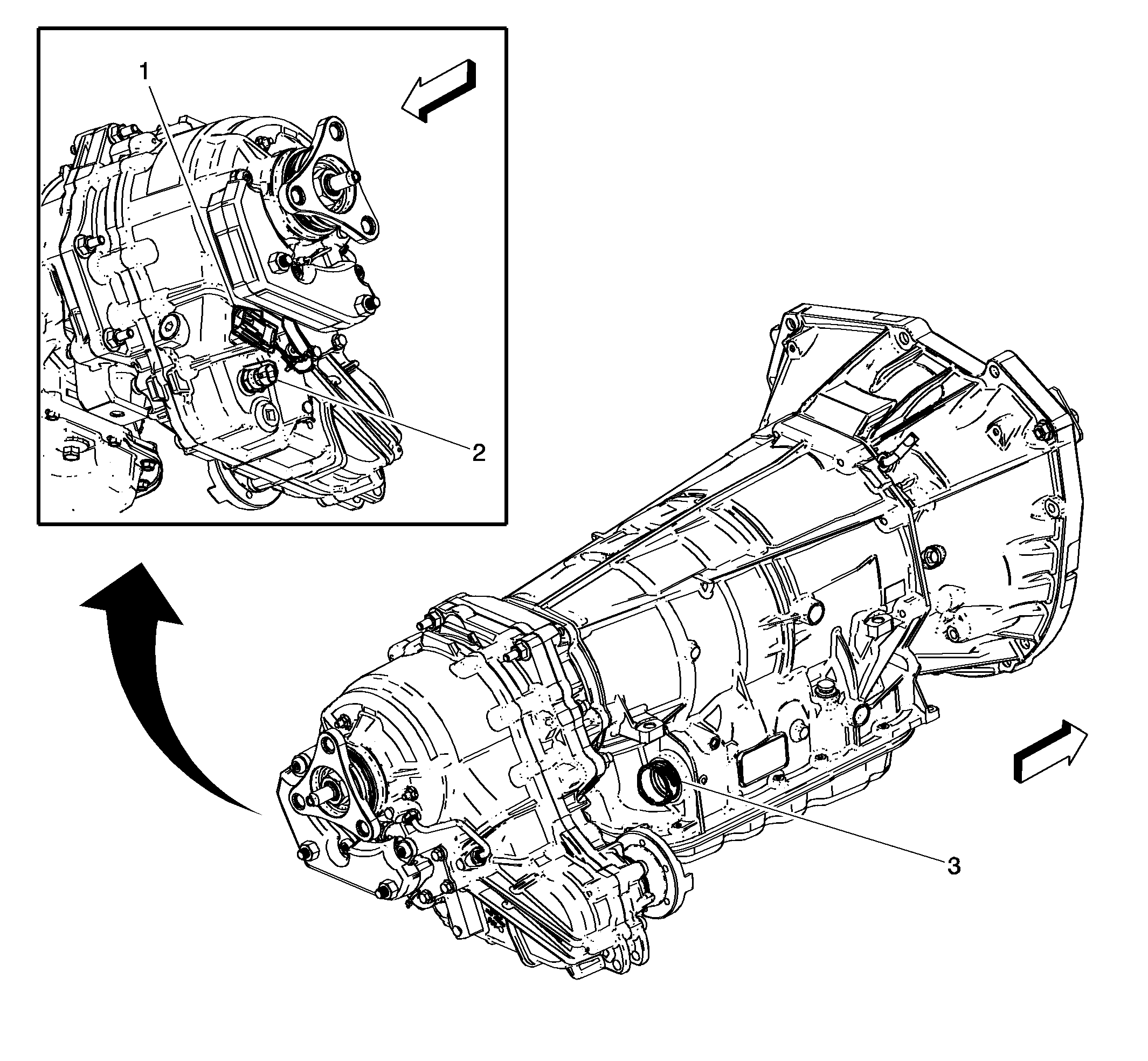

Fig 1: Automatic Transmission (MYA) and Transfer Case (F46) Components - External (F46)

Courtesy of GENERAL MOTORS COMPANY
