Input and Output Speed Sensor Assembly Installation

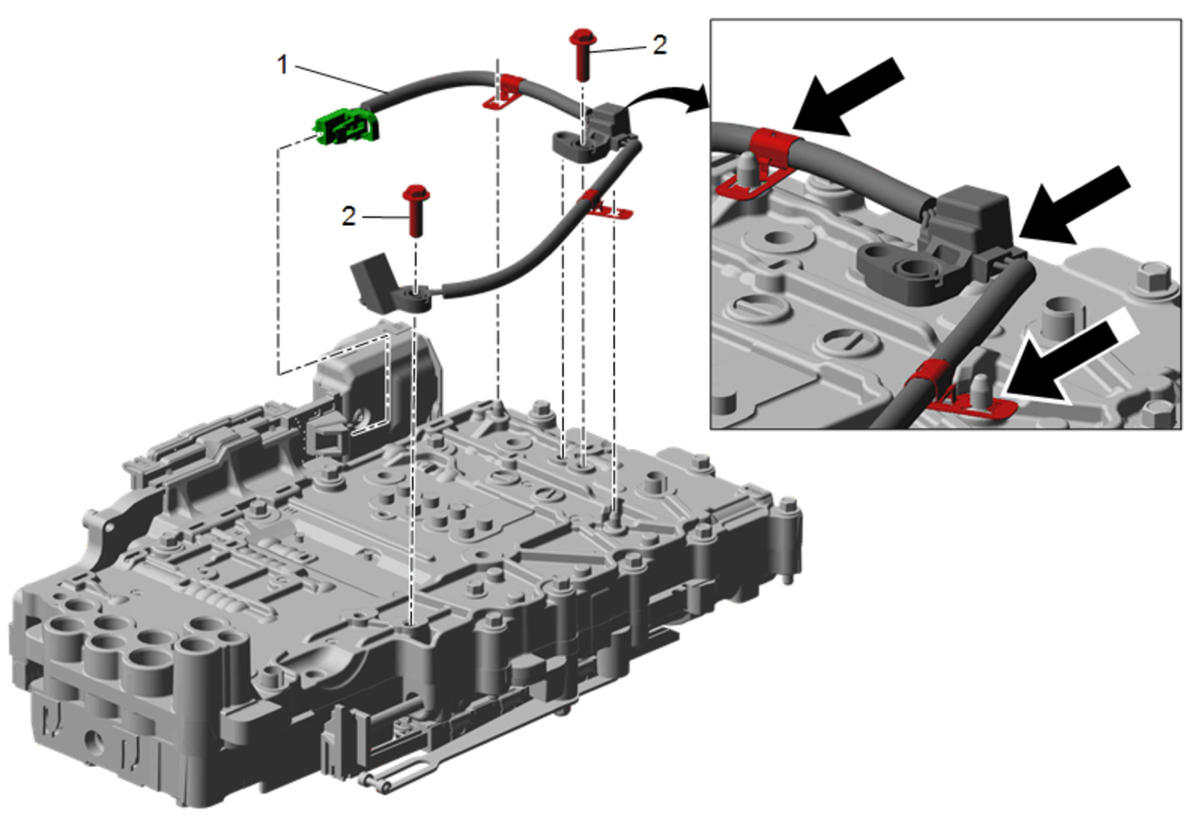

Fig 1: Input and Output Speed Sensor Assembly
GM3247892Courtesy of GENERAL MOTORS COMPANY
Input and Output Speed Sensor Assembly Installation

Callout Component Name
1 A/Trans Input and Output Speed Sensor Wiring Harness Clip (Qty: 2)
2 A/Trans Input and Output Speed Sensor Assembly
3 Bolt M6 x 20 (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (106 lb in)
