Front Passenger Door Module

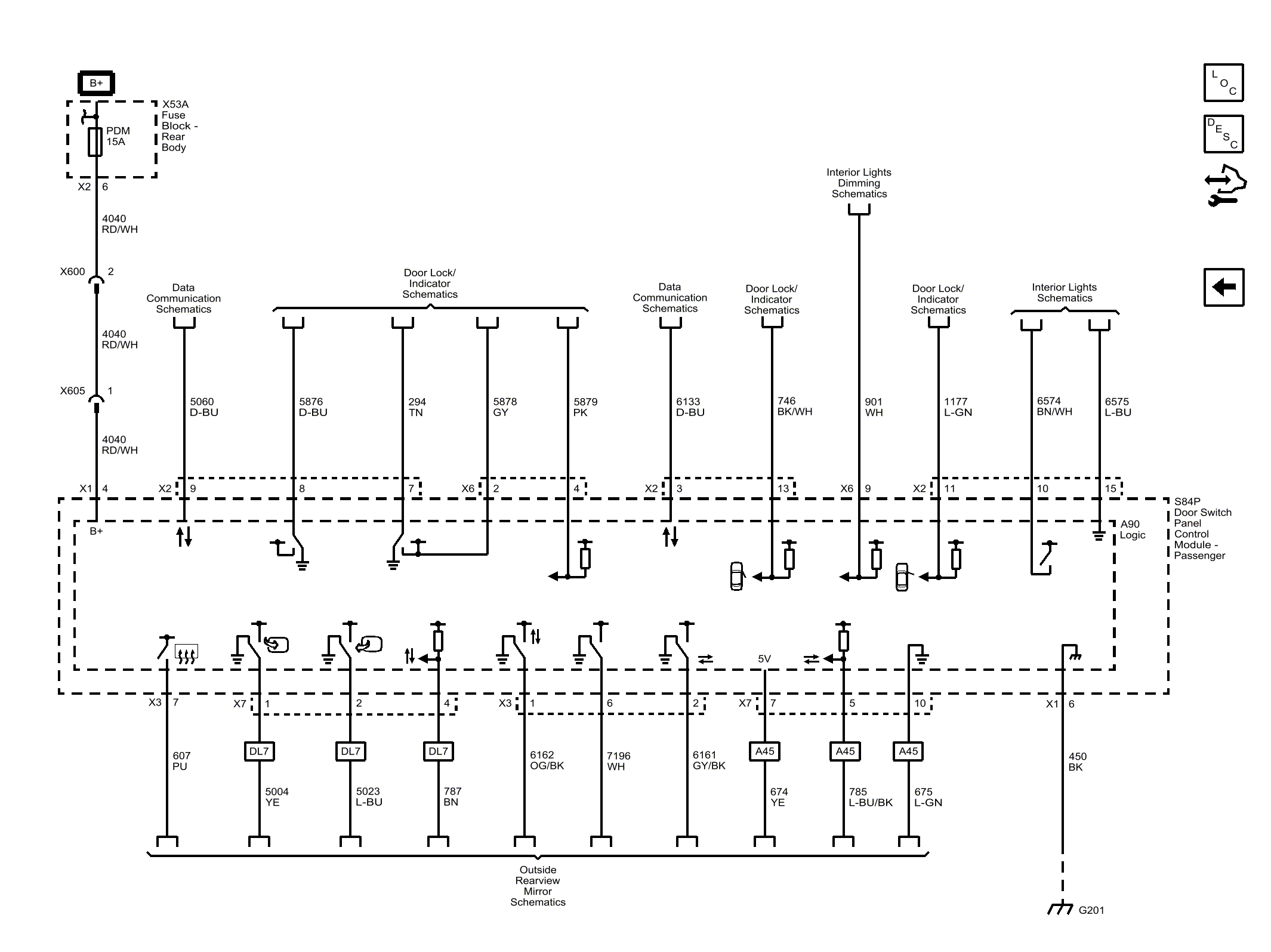

Fig 1: Front Passenger Door Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
