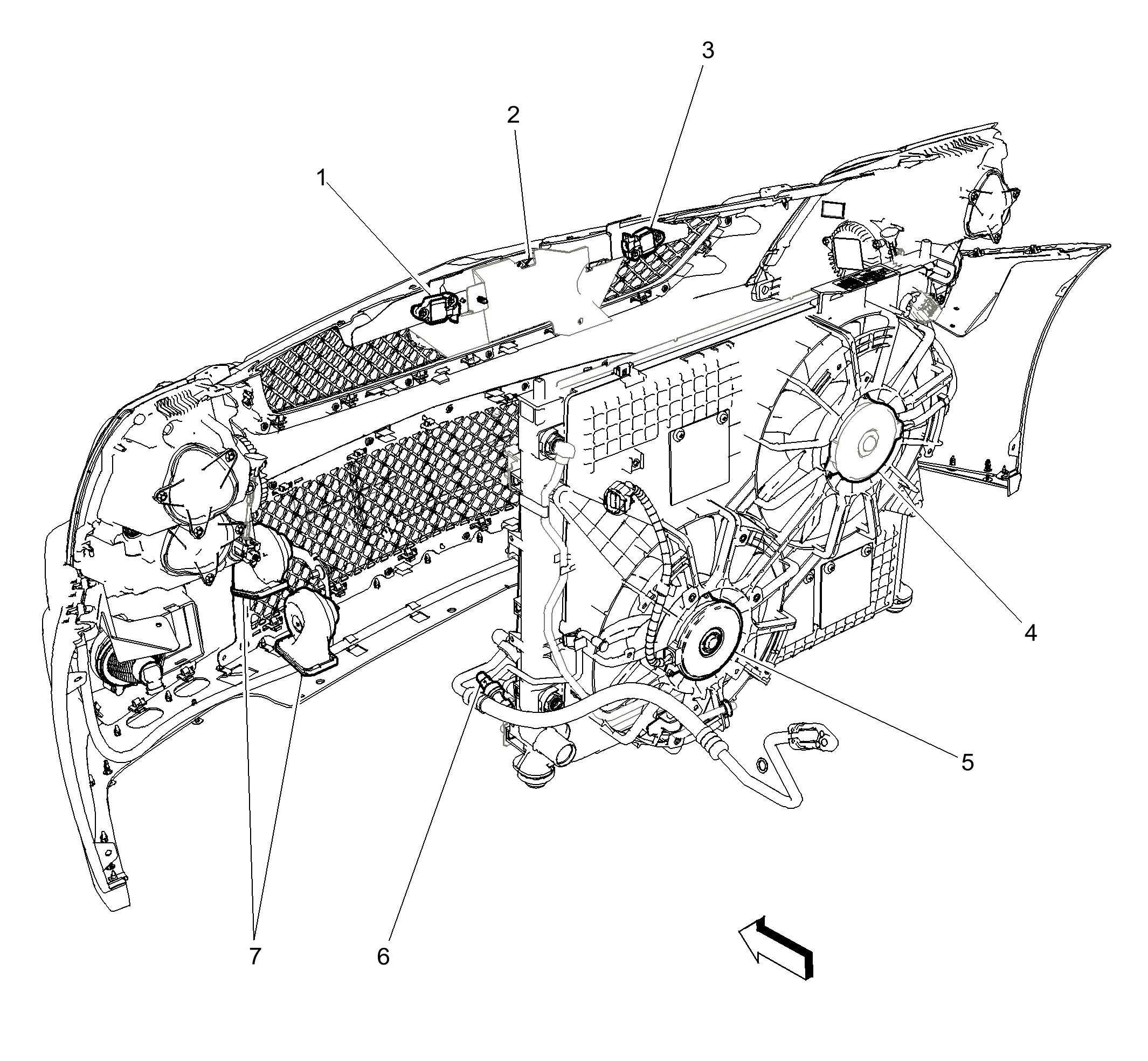

Engine Compartment Components - Front
Engine Compartment Components - Front
| Items |
|---|
| 1: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 2: B55 Hood Ajar Switch (BTM or UA2) B55 Hood Ajar Switch |
| 3: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 4: G10R Cooling Fan Motor - Right (LSA) G10R Cooling Fan Motor - Right |
| 5: G10L Cooling Fan Motor - Left (LSA) G10L Cooling Fan Motor - Left |
| 6: B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor |
| 7: P13 Horn Assembly P13 Horn Assembly |
