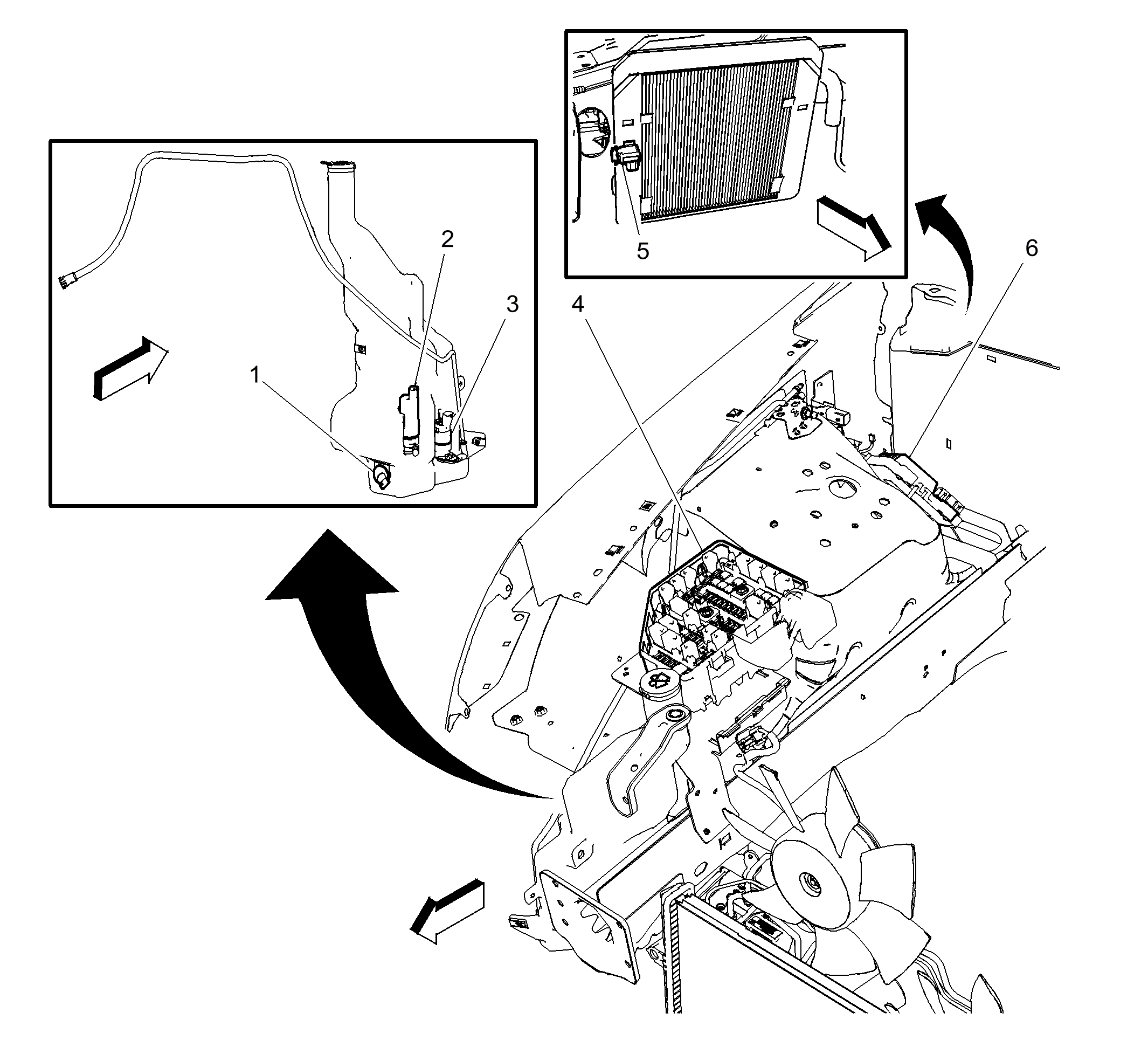

Engine Compartment Components - Right Side
Engine Compartment Components - Right Side
| Items |
|---|
| 1: B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch |
| 2: G16 Headlamp Washer Pump (CE4) G16 Headlamp Washer Fluid Pump |
| 3: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4 (To Battery)X50A Fuse Block - Underhood X4 (To Starter/Generator) |
| 5: B108 Air Quality Sensor (K14) B108 Air Quality Sensor |
| 6: K20 Engine Control Module K20 Engine Control Module X1 (LFW or LFX)K20 Engine Control Module X1K20 Engine Control Module X2 (LFW or LFX)K20 Engine Control Module X2K20 Engine Control Module X3 (LFW or LFX)K20 Engine Control Module X3 |
