Front Fascia Components (V-Series)

Items
1: E4Z Turn Signal Repeater Lamp - Right (T90) E4Z Turn Signal Repeater Lamp - Right
2: E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (T4F)E4LF Turn Signal Lamp - Left Front (without T4F)
3: E4D Daytime Running Lamp - Right (T4F) E4D Daytime Running Lamp - Right (T4F)
4: E4H Headlamp - Right Low Beam (without T4F) E4H Headlamp - Right Low Beam (without T4F)
5: E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front
6: E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front
7: E4K Park Lamp - Right Front E4K Park Lamp - Right Front
8: E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front
9: E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (T4F)E4LF Turn Signal Lamp - Left Front (without T4F)
10: E4J Park Lamp - Left Front E4J Park Lamp - Left Front
11: E4Y Turn Signal Repeater Lamp - Left (T90) E4Y Turn Signal Repeater Lamp - Left
12: E4C Daytime Running Lamp - Left (T4F) E4C Daytime Running Lamp - Left (T4F)
13: E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front
14: E4G Headlamp - Left Low Beam (without T4F) E4G Headlamp - Left Low Beam (without T4F)

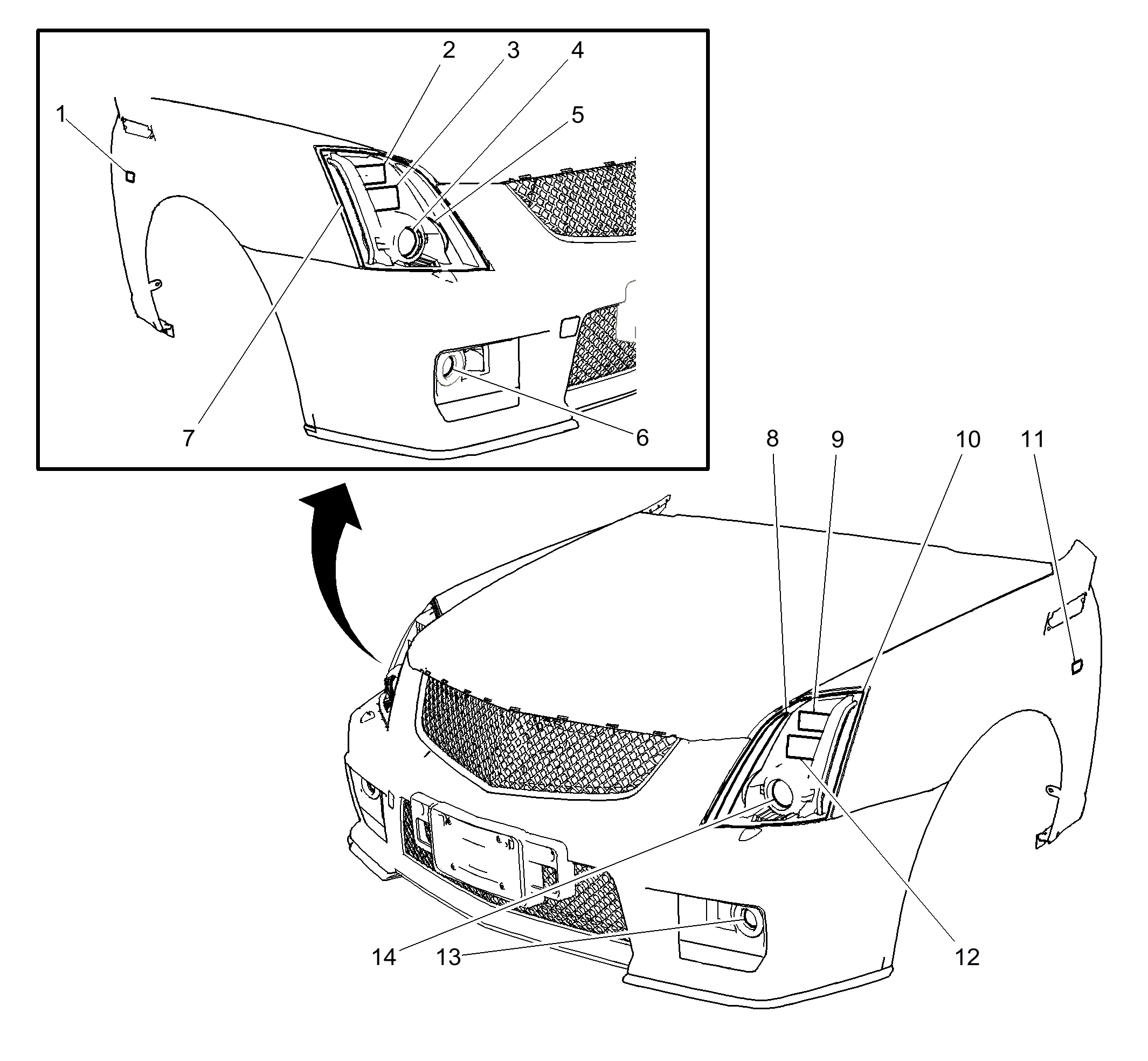

Fig 1: Identifying Front Fascia (V-Series)

Courtesy of GENERAL MOTORS COMPANY
