Liftgate Angle Sensor Replacement

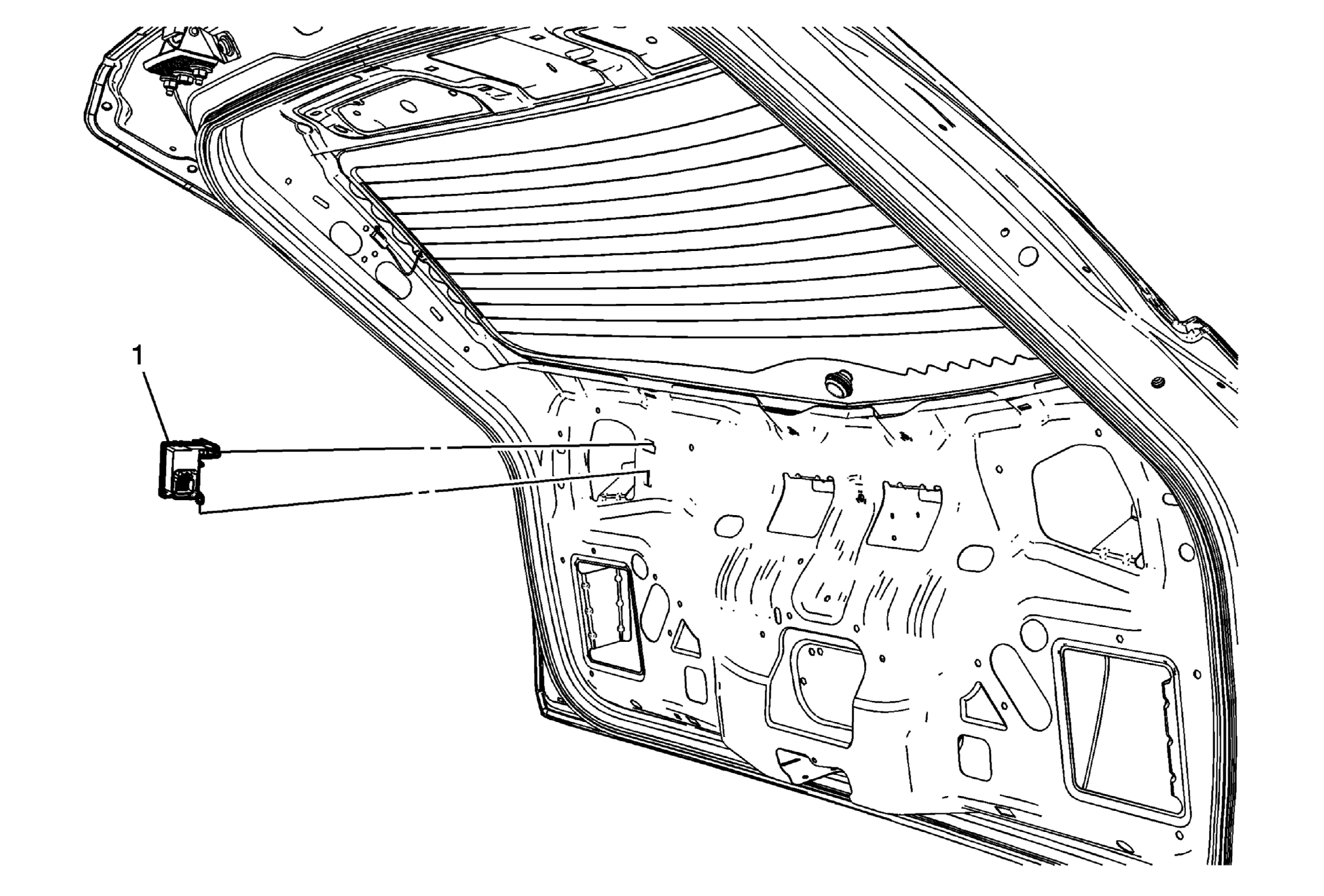

Fig 1: Liftgate Angle Sensor
GM2257494Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement
1 Liftgate Angle Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Unsnap upper portion of sensor from liftgate and lift upward to release tab.
