Mid Speed GMLAN

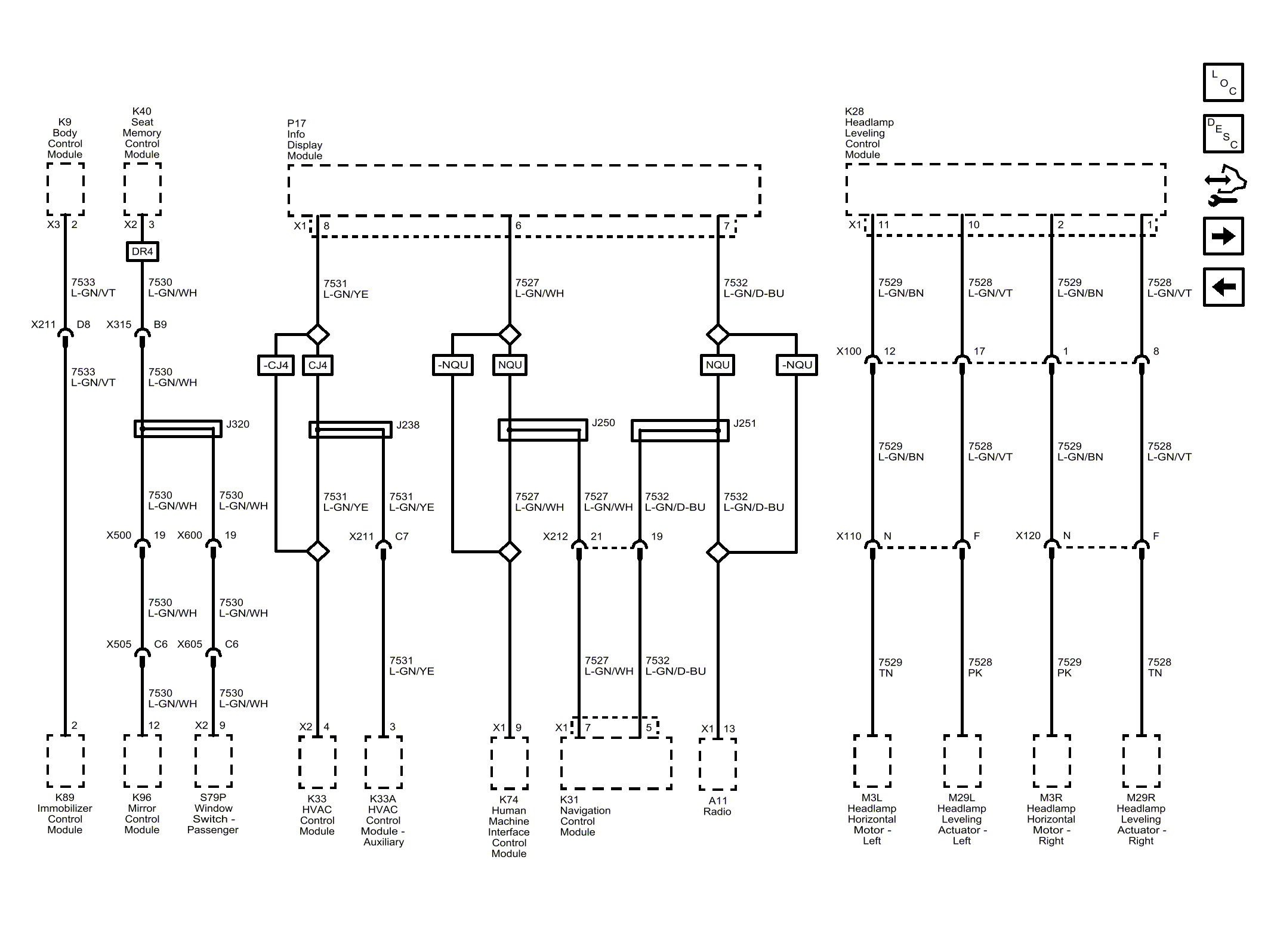

Fig 1: Mid Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
