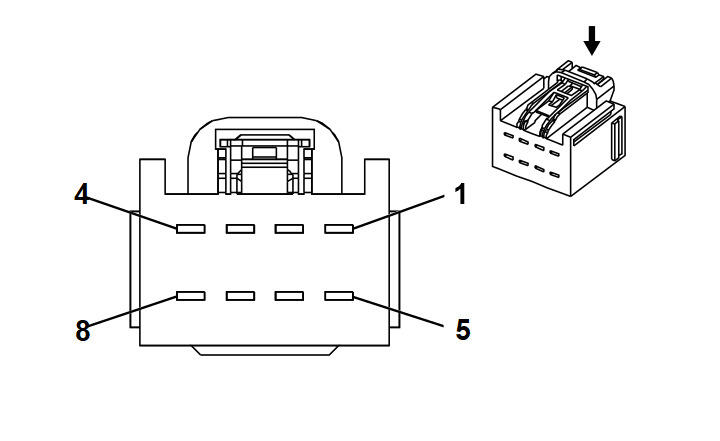

K104D Seat Lumbar Support Control Module - Driver

Connector Part Information Harness Type: Driver Seat Back OEM Connector: 7283-3243-40 Service Connector: Service by Harness - See Part Catalog Description: 8-Way F 2.8 Series (L-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-35 (VT)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1 1	L-BU VT	611 385	Driver Power Seat Lumbar Motor Forward Control Driver Power Seat Lumbar Forward Relay Control	I	A44 -A44
2	1 1	YE/BN YE/BN	768 386	Driver Power Seat Lumbar Motor Up Control Driver Power Seat Lumbar Motor Up Relay Control	I	A44 -A44
3	1	YE	1001	Retained Accessory Power Ignition	I	-
4	1	WH	1002	RAP Fuse Control	I	-
5	1 1	VT GY	610 466	Driver Power Seat Lumbar Motor Rearward Control Driver Power Seat Lumbar Rearward Relay Control	I	444 -A44
6	1 1	YE/L-BU YE/L-BU	767 467	Driver Power Seat Lumbar Motor Down Control Driver Power Seat Lumbar Down Relay Control	I	A44 -A44
7	1	OG	1003	Passenger Low Pressure Sensor Signal	I	-
8	1	L-GN	1004	Left Front Strut Position Signal	I	-
