Collision Avodance - Serial Data Short Range Radars (UVZ)

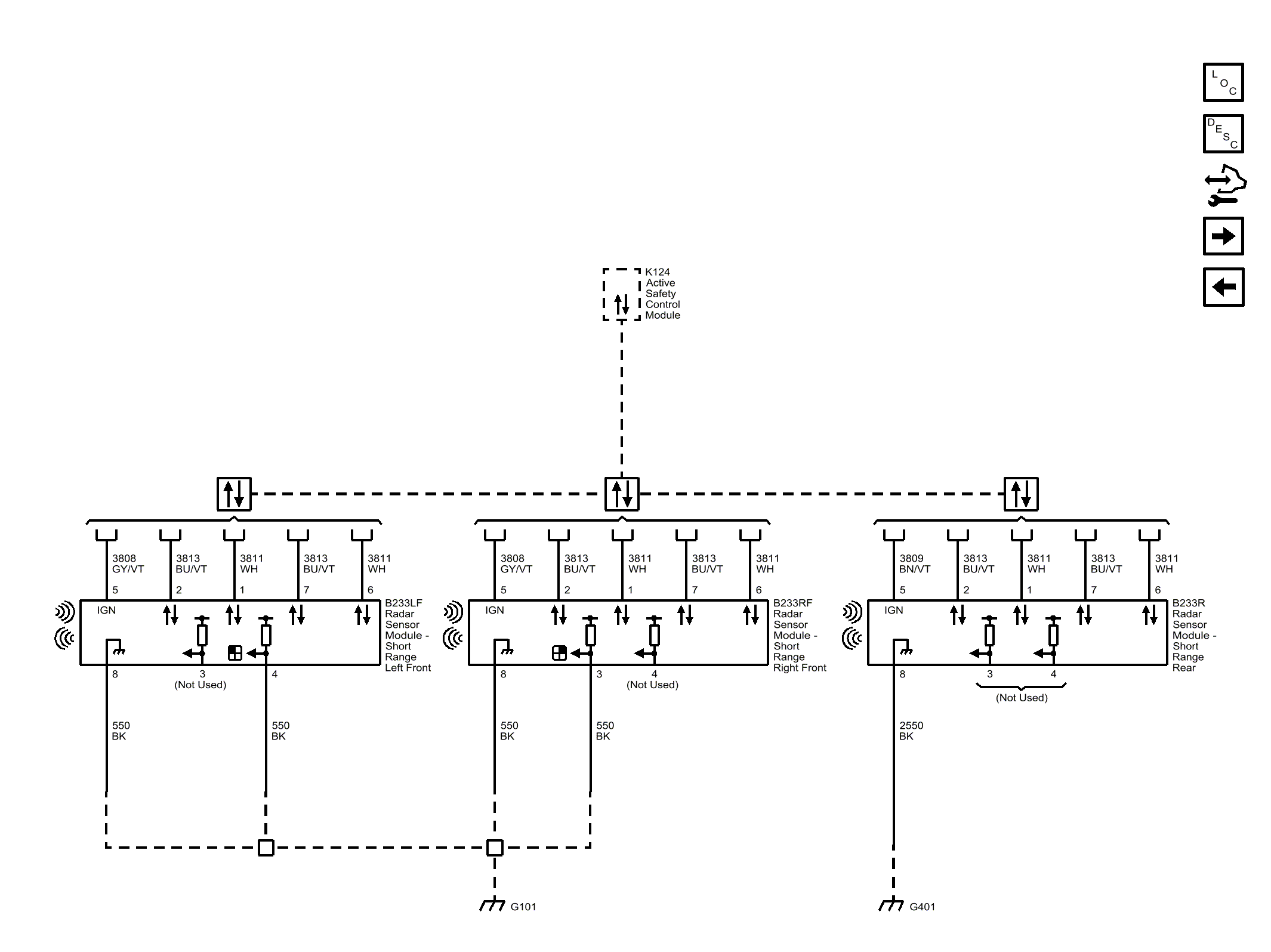

Fig 1: Collision Avodance - Serial Data Short Range Radars (UVZ)
GM4054966Courtesy of GENERAL MOTORS COMPANY
