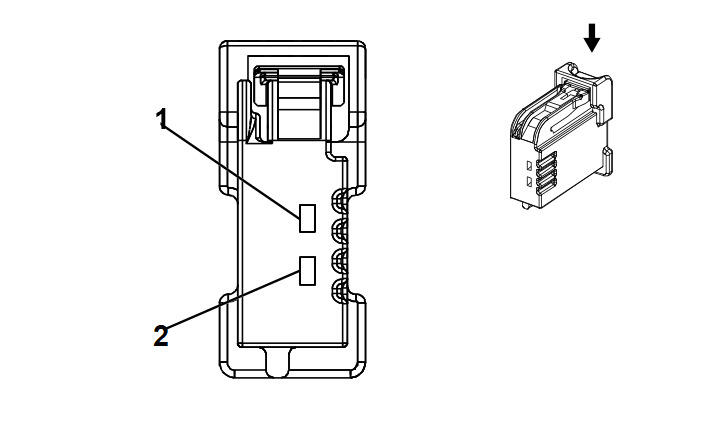

B88D Seat Belt Switch - Driver (UEU)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 19150056
- Service Connector: 13314097
- Description: 2-Way F 1.5 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK/OG |
1363 |
Driver Seat Belt Switch Low Reference |
I |
- |
| 2 |
0.35 |
OG/BN |
238 |
Driver Seat Belt Switch Signal |
I |
- |
