Vehicle Underbody Components - Below Engine

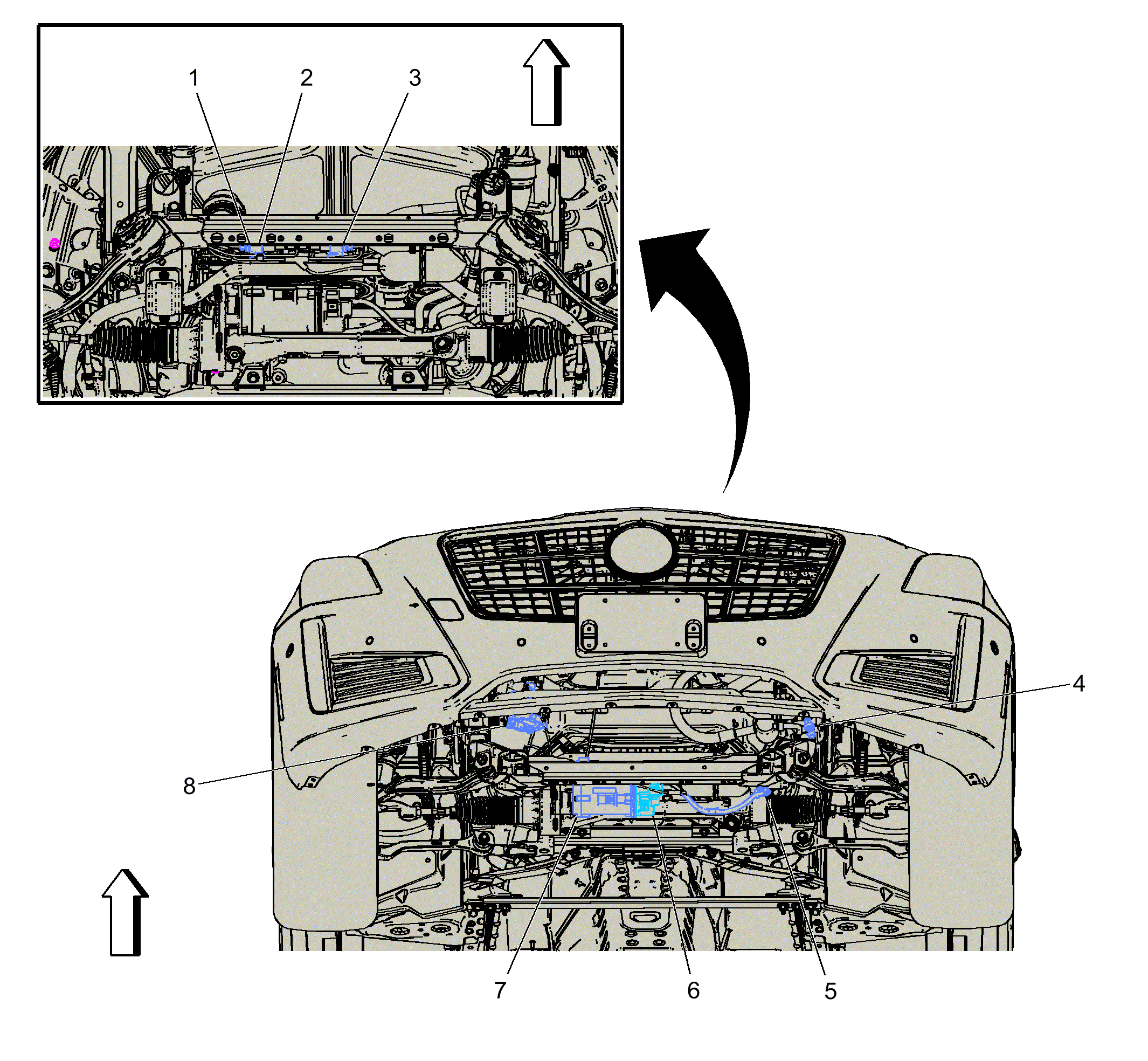

Fig 1: Vehicle Underbody Components - Below Engine
GM3455127Courtesy of GENERAL MOTORS COMPANY
Items
1. Q80 Engine Mount Solenoid Valve (LF4 or LGX) Q80 Engine Mount Solenoid Valve
2. Q80R Engine Mount Solenoid Valve - Right (LTG) Q80R Engine Mount Solenoid Valve - Right
3. Q80L Engine Mount Solenoid Valve - Left (LTG) Q80L Engine Mount Solenoid Valve - Left
4. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
5. B137 Power Steering Shaft Torque Sensor
6. K43 Power Steering Control Module K43 Power Steering Control Module X1 ()K43 Power Steering Control Module X2K43 Power Steering Control Module X3
7. M38 Power Steering Motor
8. M10 Charge Air Cooler Coolant Pump (LF4 or LT4) M10 Charge Air Cooler Coolant Pump (LF4/LT4)M10 Charge Air Cooler Coolant Pump (LGX)
