G104 and G109 (LF3)

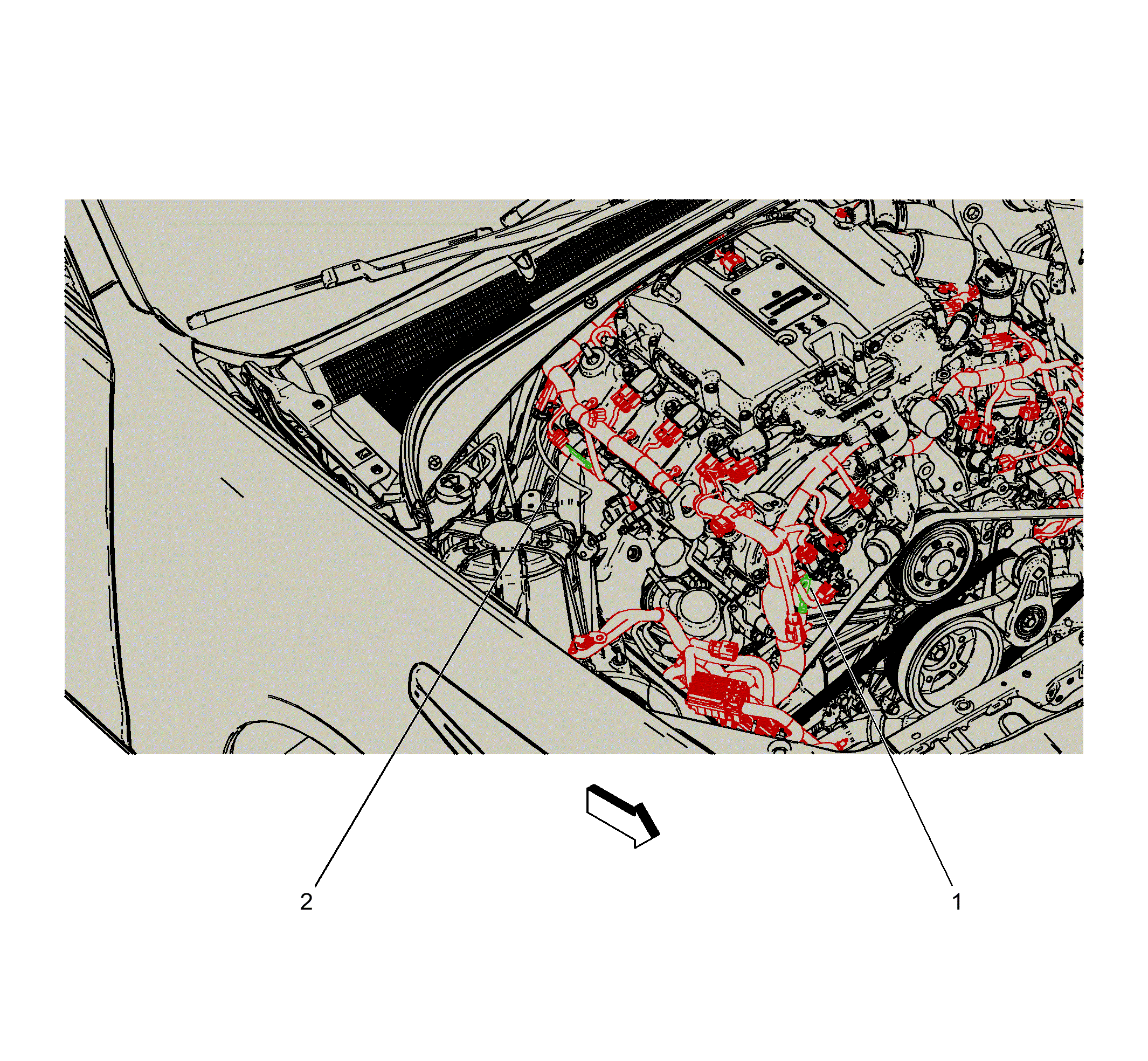

Fig 1: G104 and G109 (LF3)
Courtesy of GENERAL MOTORS COMPANY
Items
1. G104
2. G109
Courtesy of GENERAL MOTORS COMPANY
