Q77D Transmission Control Solenoid Valve 4 (8Lxx)
 Courtesy of GENERAL MOTORS COMPANY
|

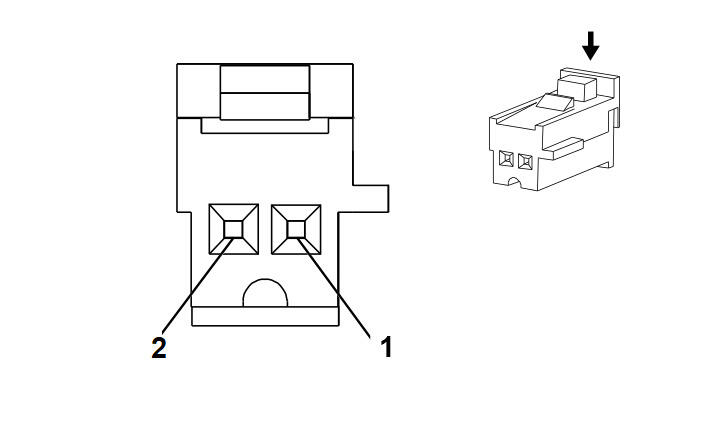

Connector Part Information
- Harness Type: Transmission Control
- OEM Connector: 13947283
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 0.64 MTS Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
4508 |
Transmission Clutch G Control |
I |
- |
| 2 |
0.5 |
GN/GY |
6387 |
Transmission High Side Driver 1 Signal Driver |
I |
- |
