Engine Components - Ignition Coils (LT4)

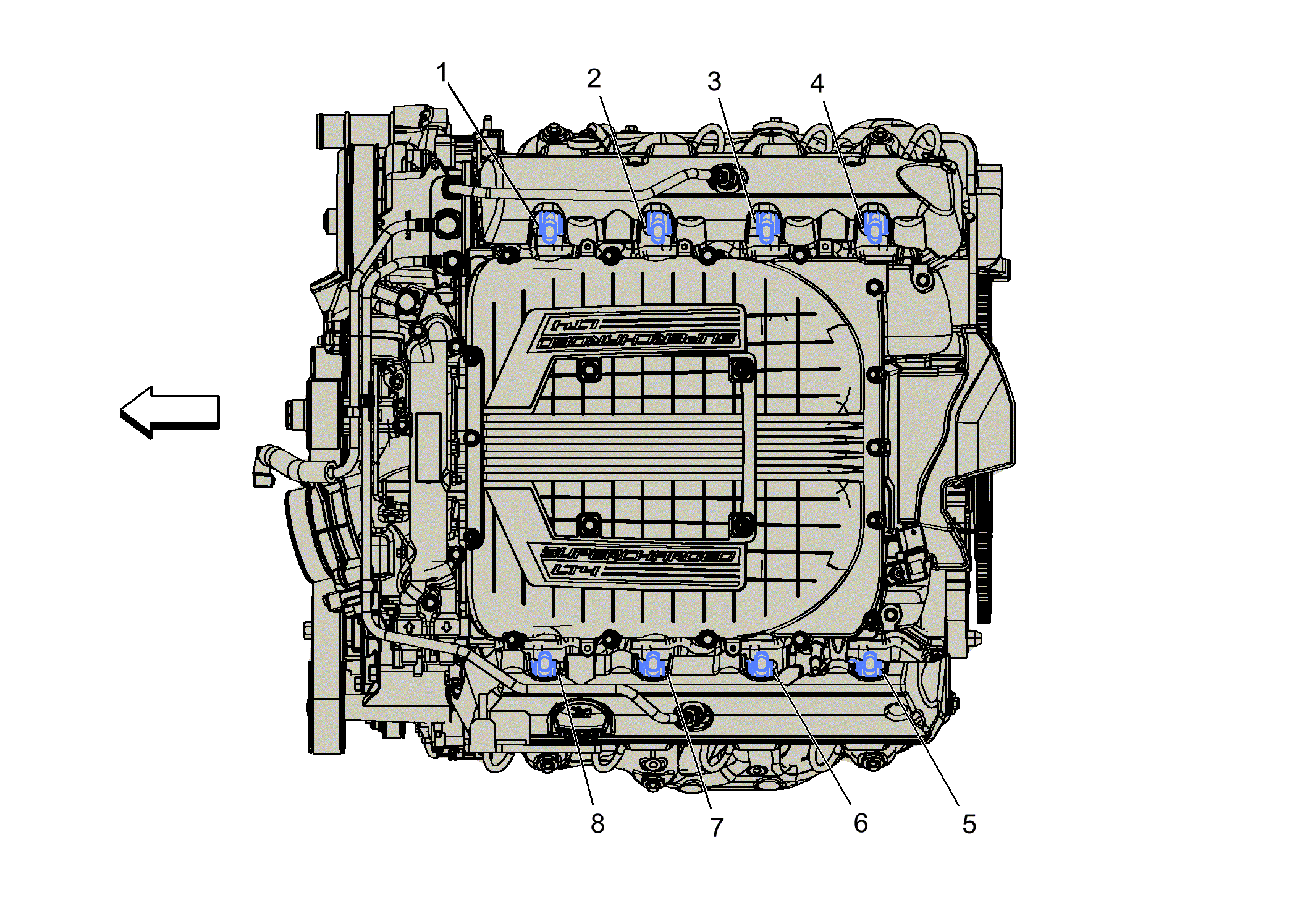

Fig 1: Engine Components - Ignition Coils (LT4)
GM4166516Courtesy of GENERAL MOTORS COMPANY
Items
1. T8B Ignition Coil 2 T8B Ignition Coil 2 (LF4)T8B Ignition Coil 2 (LGX)T8B Ignition Coil 2 (LT4)T8B Ignition Coil 2 (LTG)
2. T8D Ignition Coil 4 T8D Ignition Coil 4 (LF4)T8D Ignition Coil 4 (LGX)
3. T8F Ignition Coil 6 (LF4 or LGX or LT4) T8F Ignition Coil 6 (LF4)T8F Ignition Coil 6 (LGX)T8F Ignition Coil 6 (LT4)
4. T8H Ignition Coil 8 (LT4) T8H Ignition Coil 8
5. T8G Ignition Coil 7 (LT4) T8G Ignition Coil 7
6. T8E Ignition Coil 5 (LF4 or LGX or LT4) T8E Ignition Coil 5 (LF4)T8E Ignition Coil 5 (LGX)T8E Ignition Coil 5 (LT4)
7. T8C Ignition Coil 3 T8C Ignition Coil 3 (LF4)T8C Ignition Coil 3 (LGX)T8C Ignition Coil 3 (LT4)T8C Ignition Coil 3 (LTG)
8. T8A Ignition Coil 1 T8A Ignition Coil 1 (LF4)T8A Ignition Coil 1 (LGX)T8A Ignition Coil 1 (LT4)
