Vehicle Underbody Components - Above Rear Axle Components

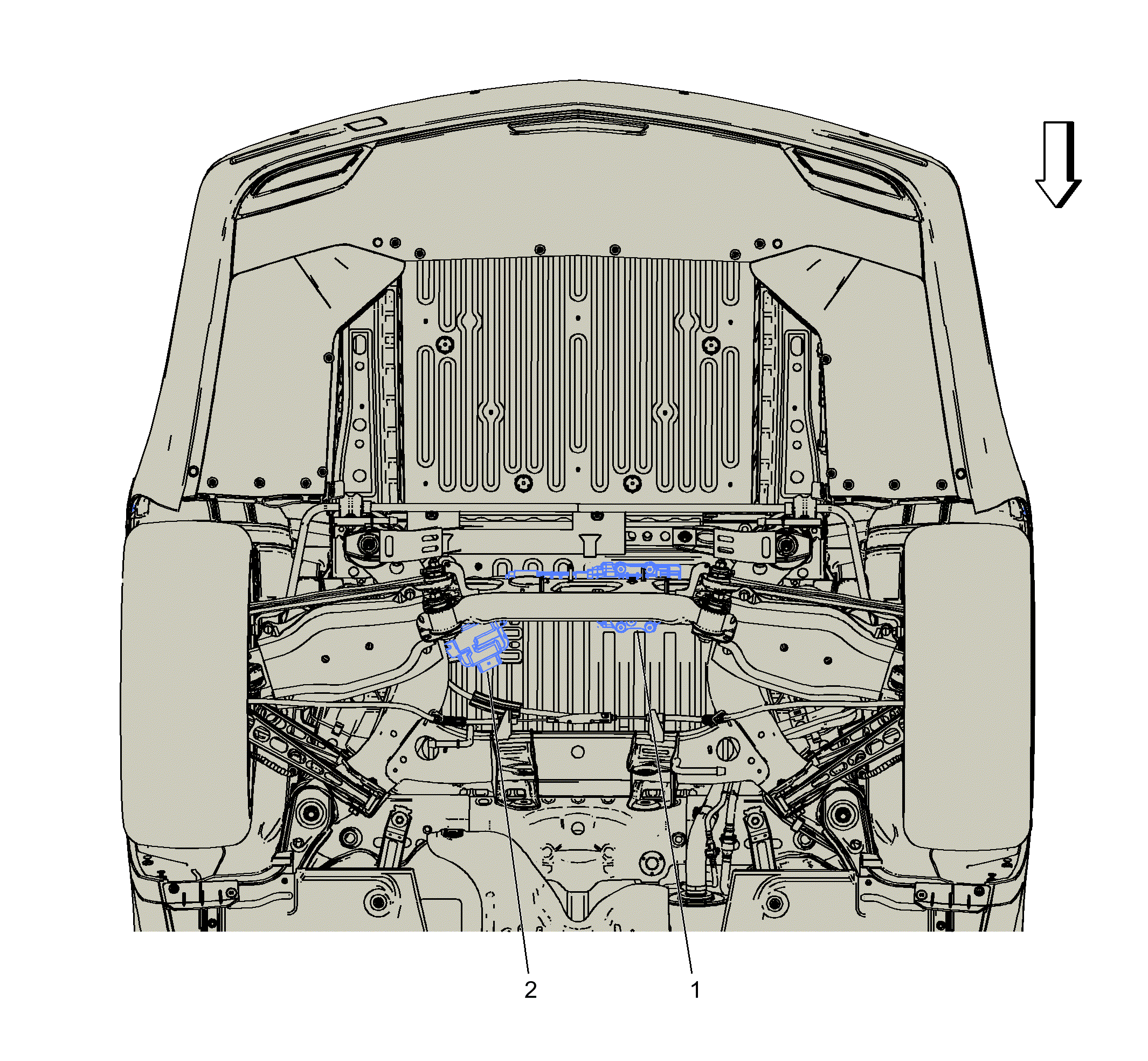

Fig 1: Vehicle Underbody Components - Above Rear Axle Components
GM3455132Courtesy of GENERAL MOTORS COMPANY
Items
1. K83 Park Brake Control Module K83 Park Brake Control Module
2. K111 Fuel Pump Driver Control Module (LF4 or LT4) K111 Fuel Pump Driver Control Module (LF4)K111 Fuel Pump Driver Control Module (LT4)
