Vehicle Underbody Components - Rear Axle Components (G96)

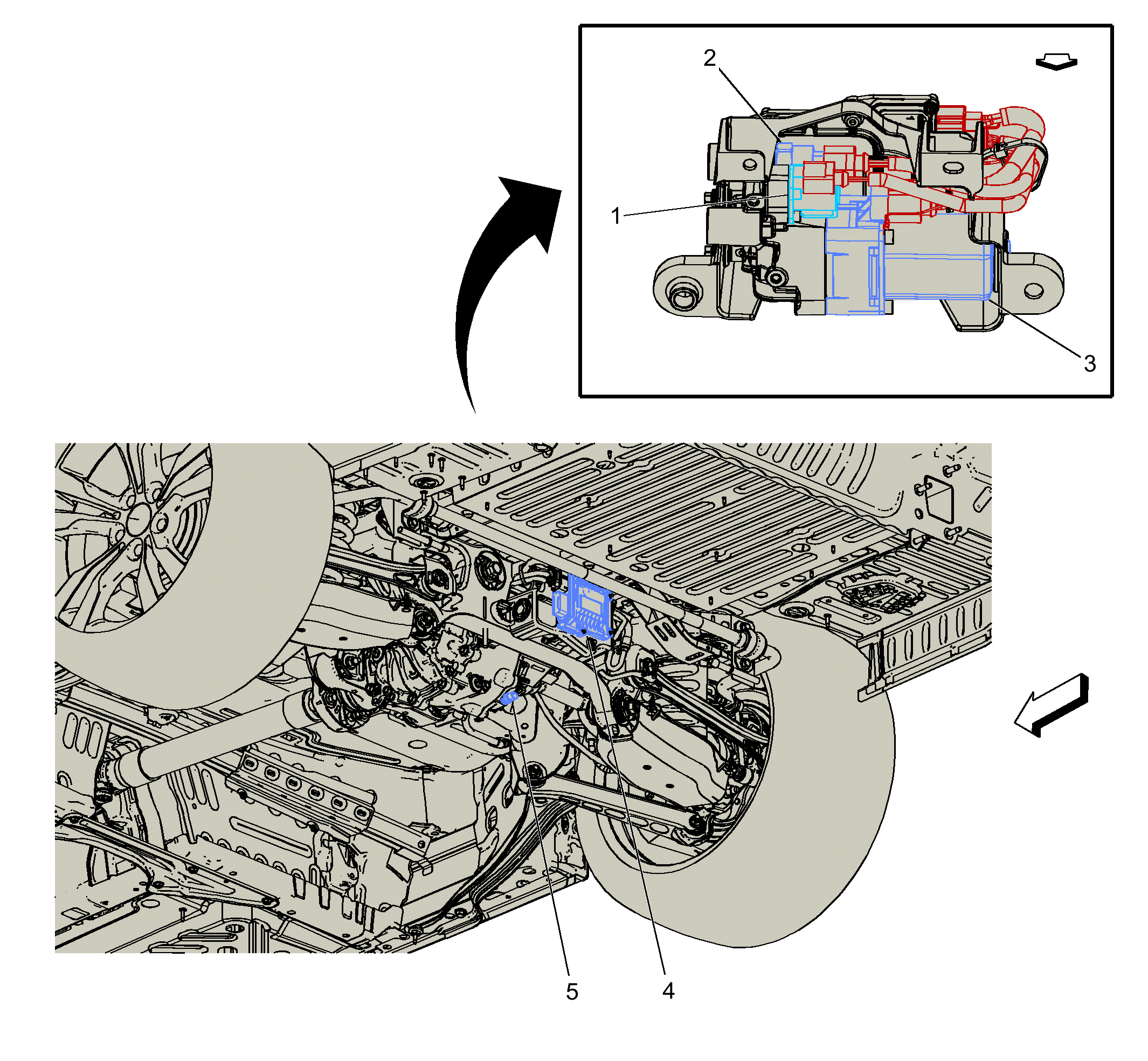

Fig 1: Vehicle Underbody Components - Rear Axle Components (G96)
GM3455133Courtesy of GENERAL MOTORS COMPANY
Items
1. Q49 Rear Differential Clutch Solenoid Valve (G96) Q49 Rear Differential Clutch Solenoid Valve (G96)
2. B260 Rear Differential Oil Pressure/Temperature Sensor (G96) B260 Rear Differential Oil Pressure/Temperature Sensor (G96)
3. M32 Differential Clutch Pump (G96) M32 Differential Clutch Pump (G96)
4. K47 Rear Differential Clutch Control Module (G96) K47 Rear Differential Clutch Control Module ()
5. B269 Rear Differential Oil Temperature Sensor (G96) B269 Rear Differential Oil Temperature Sensor
