Vehicle Underbody Components - Right Front Wheelwell

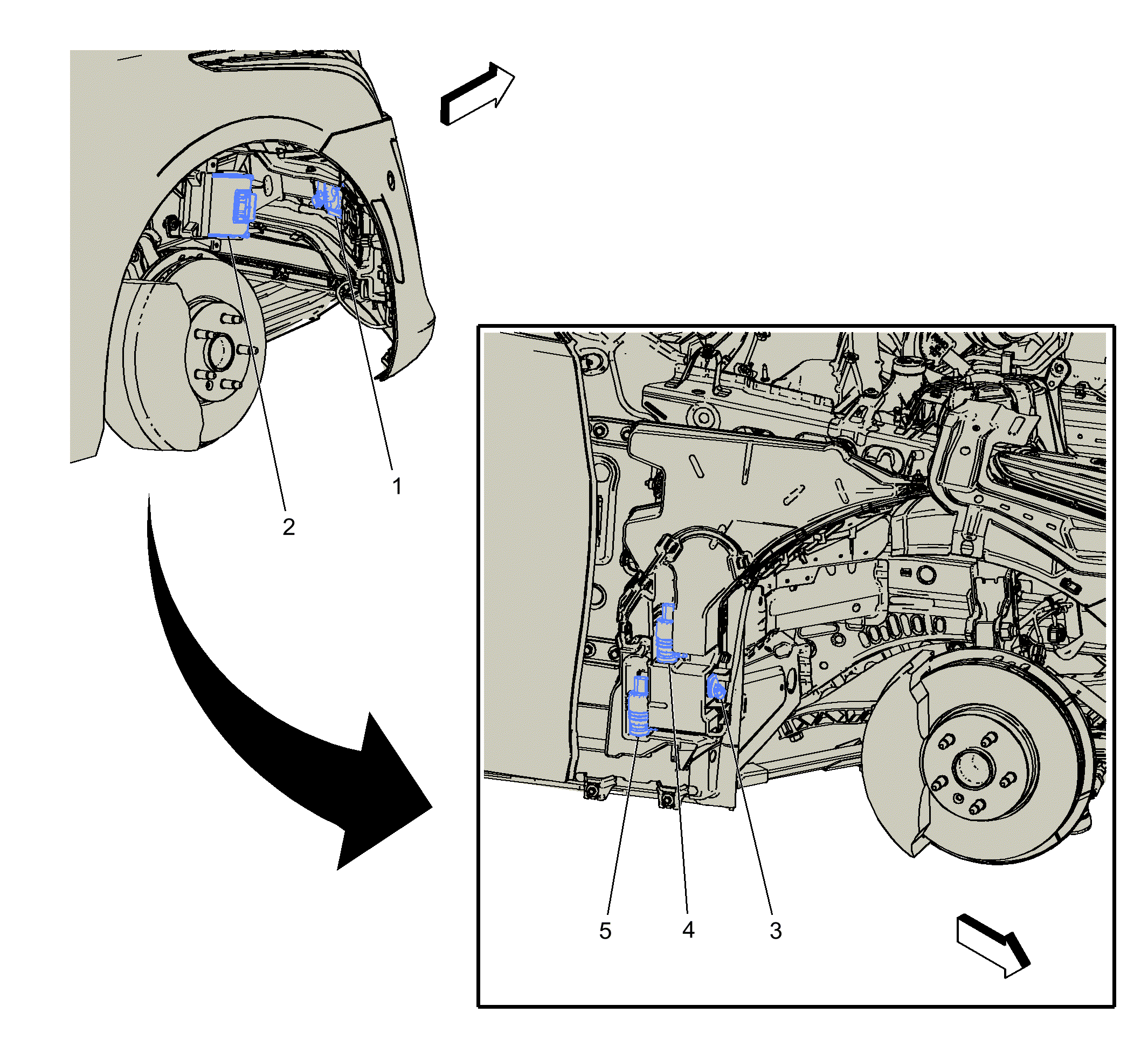

Fig 1: Vehicle Underbody Components - Right Front Wheelwell
GM3455129Courtesy of GENERAL MOTORS COMPANY
Items
1. P12R Horn - Right (LT4) P12R Horn - Right
2. K71 Transmission Control Module K71 Transmission Control Module (M5N/M5U)K71 Transmission Control Module (MGG)
3. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
4. G16 Headlamp Washer Pump (CE4) G16 Headlamp Washer Pump (CE4)
5. G24 Windshield Washer Pump G24 Windshield Washer Pump
