Vehicle Performance Data Recorder Bracket Replacement

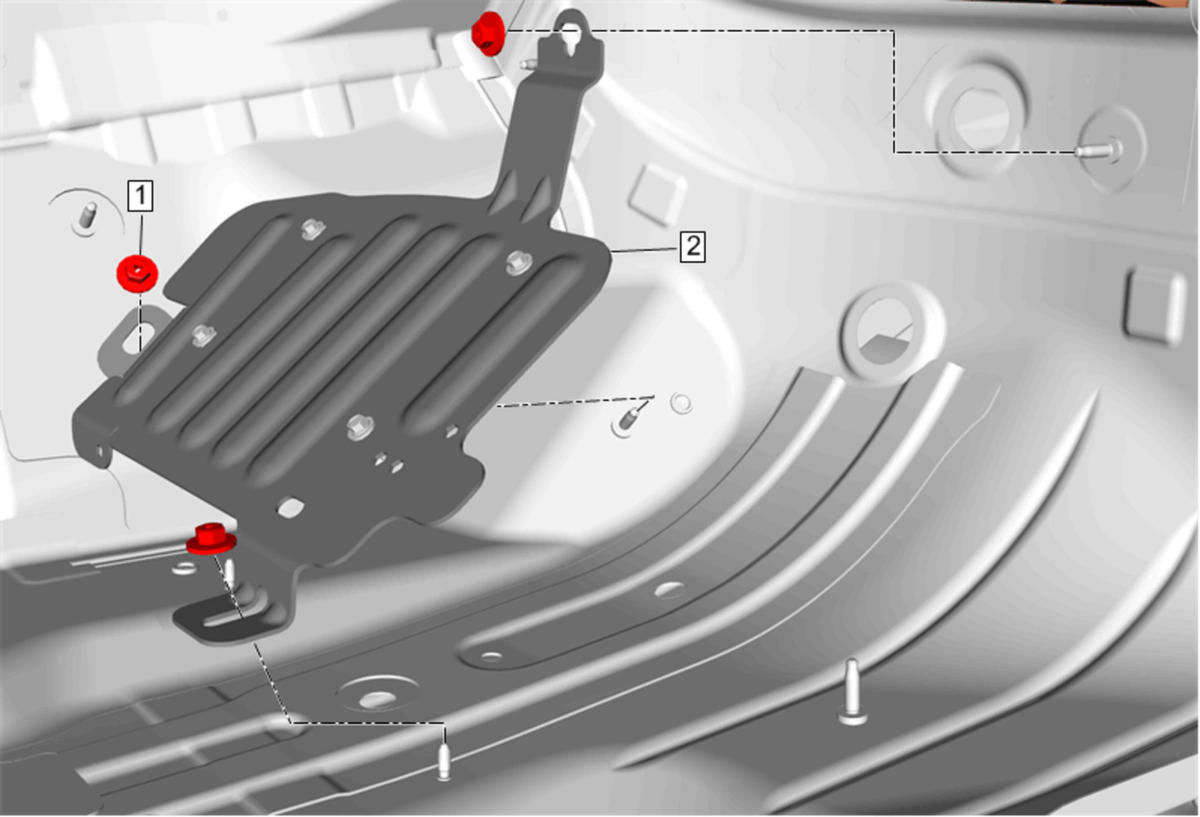

Fig 1: Vehicle Performance Data Recorder Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the front floor panel carpet-right side. Only do the steps in the front floor panel carpet-right side replacement that will allow access to the part. Refer to Front Floor Panel Carpet Replacement - Right Side
1	Vehicle Performance Data Recorder Bracket Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Vehicle Performance Data Recorder Bracket Procedure Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Reposition the front floor panel carpet-right side. Only do the steps in the front floor panel carpet-right side replacement that will allow access to the part. Refer to Front Floor Panel Carpet Replacement - Right Side

Vehicle Performance Data Recorder Bracket Fastener [3x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Vehicle Performance Data Recorder Bracket

Procedure

Disconnect all electrical connectors.
Transfer components as necessary.
