Power, Ground and Subsystem References (1 of 3)

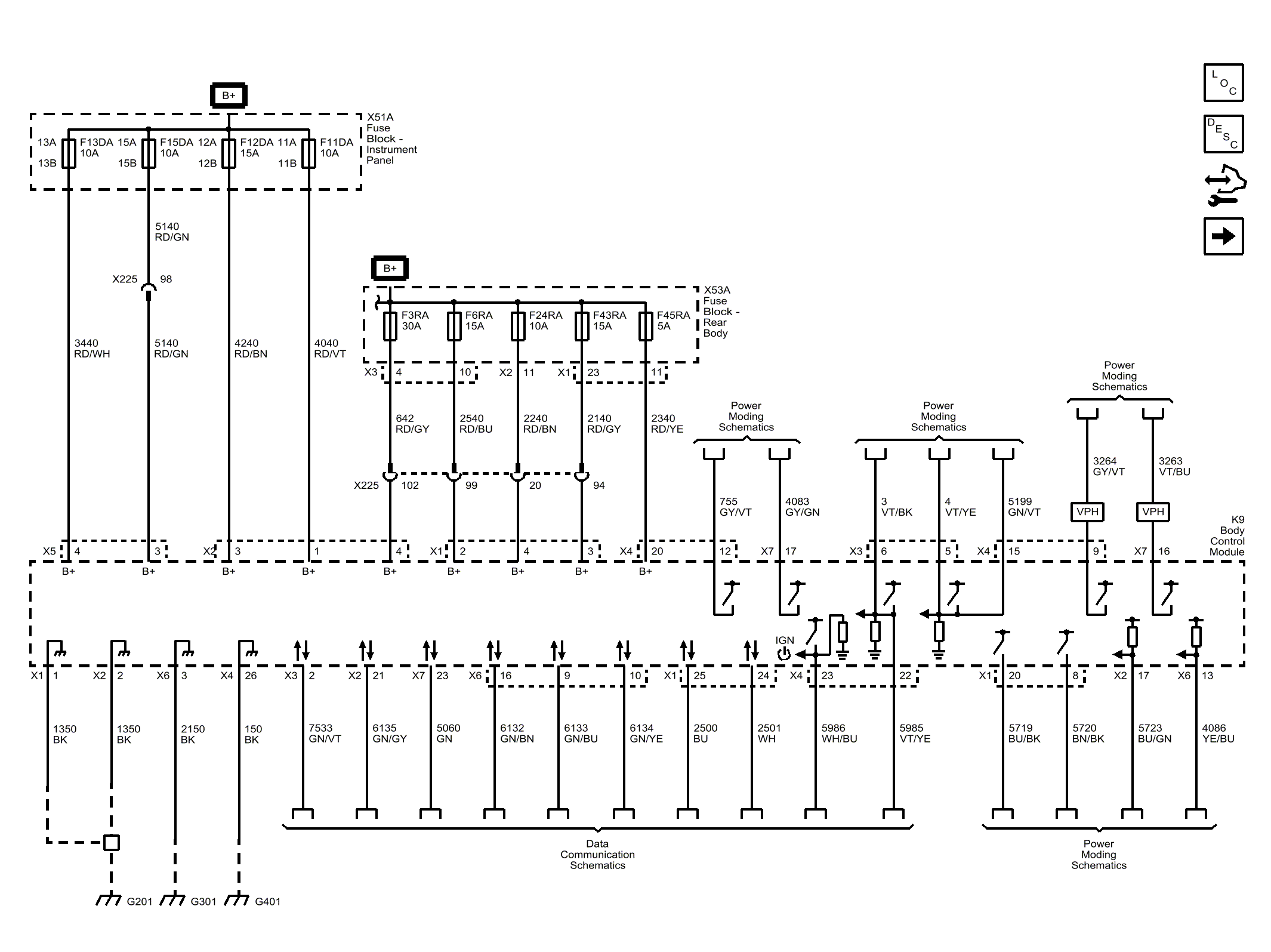

Fig 1: Power, Ground and Subsystem References (1 of 3)
GM4078798Courtesy of GENERAL MOTORS COMPANY
