K17 Electronic Brake Control Module

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

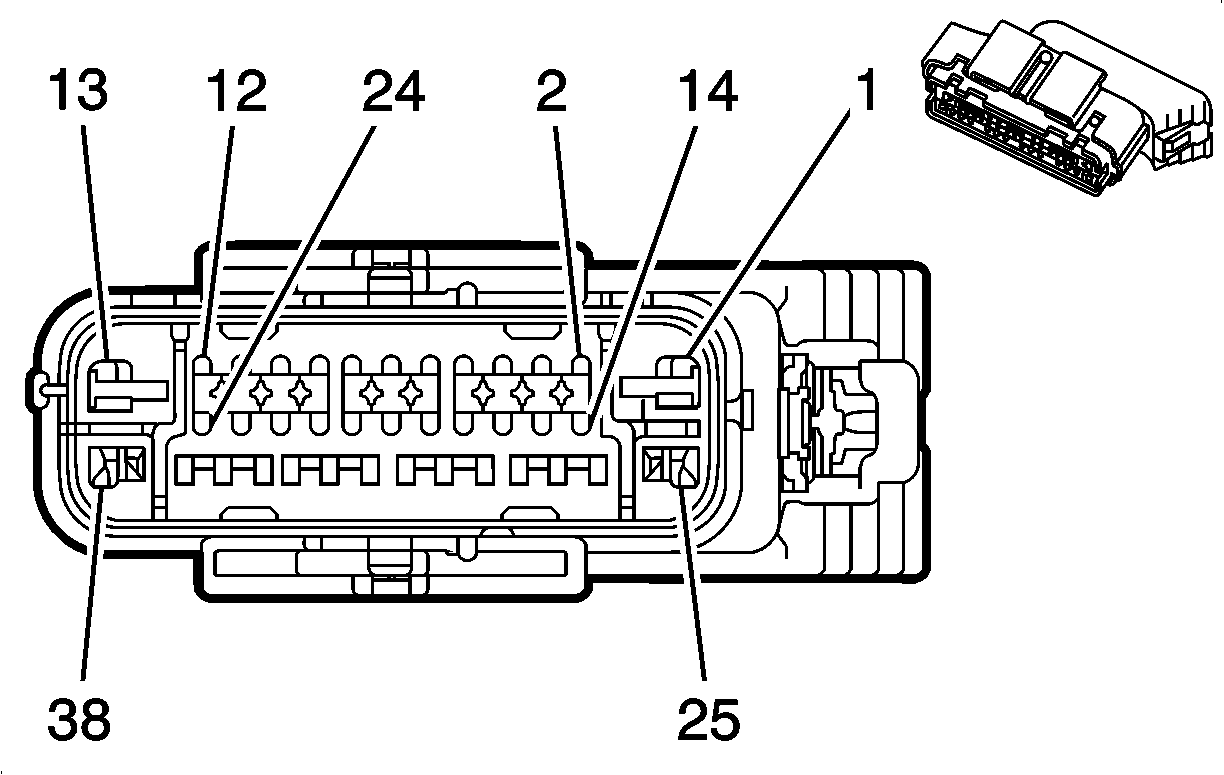

Connector Part Information

Harness Type: Engine
OEM Connector: 31380-1000
Service Connector: 19178085
Description: 38-Way F 0.64, 2.8, 6.3 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13579767	J-35616-42 (RD)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
II	13578924	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
III	13579782	J-35616-4A (PU)	J-38125-553	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	5	BK	1150	Ground	I	LSA or MG9
2	0.5	WH	883	Wheel Speed Sensor Low Reference Right Rear	II	MV7 or MG9
3	0.5	BN	882	Wheel Speed Sensor Signal Right Rear	II	MV7 or MG9
4	0.5	TN	884	Wheel Speed Sensor Signal Left Rear	II	MV7 or MG9
5	0.5	OG	885	Wheel Speed Sensor Low Reference Left Rear	II	MV7 or MG9
6	0.5	TN	833	Wheel Speed Sensor Low Reference Right Front	II	MV7 or MG9
7-11	-	-	-	Not Occupied	-	-
12	0.5	L-BU	5986	Serial Data Communication Enable	II	MV7 or MG9
13	5	RD/BK	42	Battery Positive Voltage	I	MV7 or MG9
14	0.5	BN	1295	Variable Effort Steering Solenoid Control	II	DN or MG9
15-16	-	-	-	Not Occupied	-	-
17	0.5	D-GN	872	Wheel Speed Sensor Signal Right Front	II	MV7 or MG9
18	0.5	GY	1056	Steering Wheel Position Sensor 5 Volt Reference	II	MV7 or MG9
19	0.5	GY/BK	1337	Yaw Rate Sensor Volt Reference	II	MV7 or MG9
20	-	-	-	Not Occupied	-	-
21	0.5	L-GN/BK	6432	CAN Bus Low Serial Data	II	MV7 or MG9
22	-	-	-	Not Occupied	-	-
23	0.5 0.5	TN TN	2501 2501	High Speed GMLAN Serial Data (-) (1) High Speed GMLAN Serial Data (-) (1)	II	LSA LSA and MG9
24	0.5	TN	2501	High Speed GMLAN Serial Data (-) (1)	II	LSA or MG9
25	2	BK	1150	Ground	III	LSA or MG9
26	0.5	WH	1294	Variable Effort Steering Solenoid Supply Voltage	II	DN or MG9
27	-	-	-	Not Occupied	-	-
28	0.5	L-BU	830	Wheel Speed Sensor Signal Left Front	II	MV7 or MG9
29	0.5	YE	873	Left Front Wheel Speed Sensor Low Reference	II	MV7 or MG9
30-32	-	-	-	Not Occupied	-	-
33	0.5	TN/WH	6433	CAN Bus High Serial Data	II	MV7 or MG9
34-35	-	-	-	Not Occupied	-	-
36	0.5 0.5	TN/BK TN/BK	2500 2500	High Speed GMLAN Serial Data (+) (1) High Speed GMLAN Serial Data (+) (1)	II	LSA LSA and MG9
37	0.5	TN/BK	2500	High Speed GMLAN Serial Data (+) (1)	II	LSA or MG9
38	2	RD/WH	240	Battery Positive Voltage	III	MV7 or MG9
