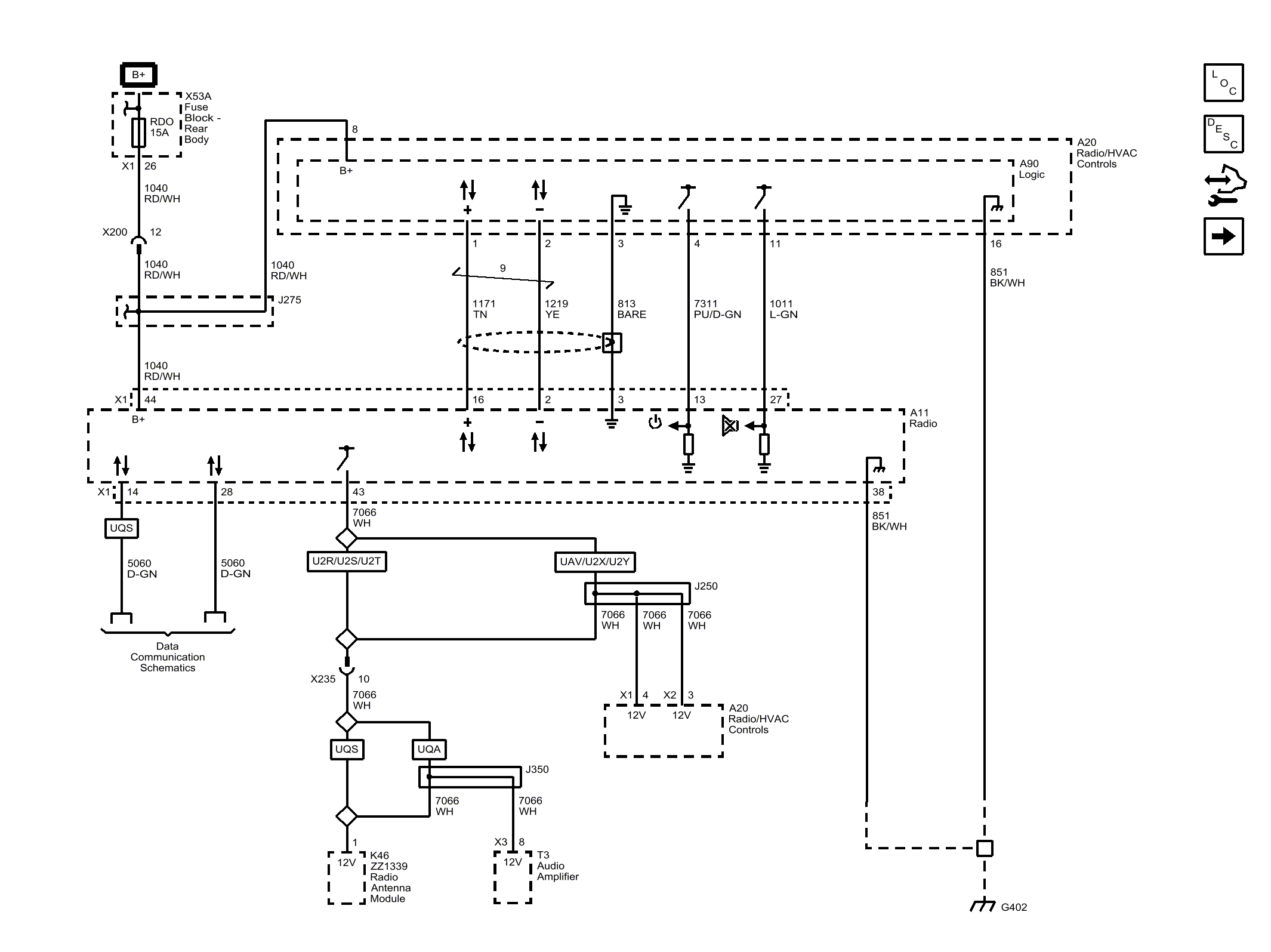

Power, Ground, Data Communication, and Amp, Radio, Radio/HVAC (U2R, U2S, U2T)

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
