Pedestrian Sound Alert Speaker Replacement

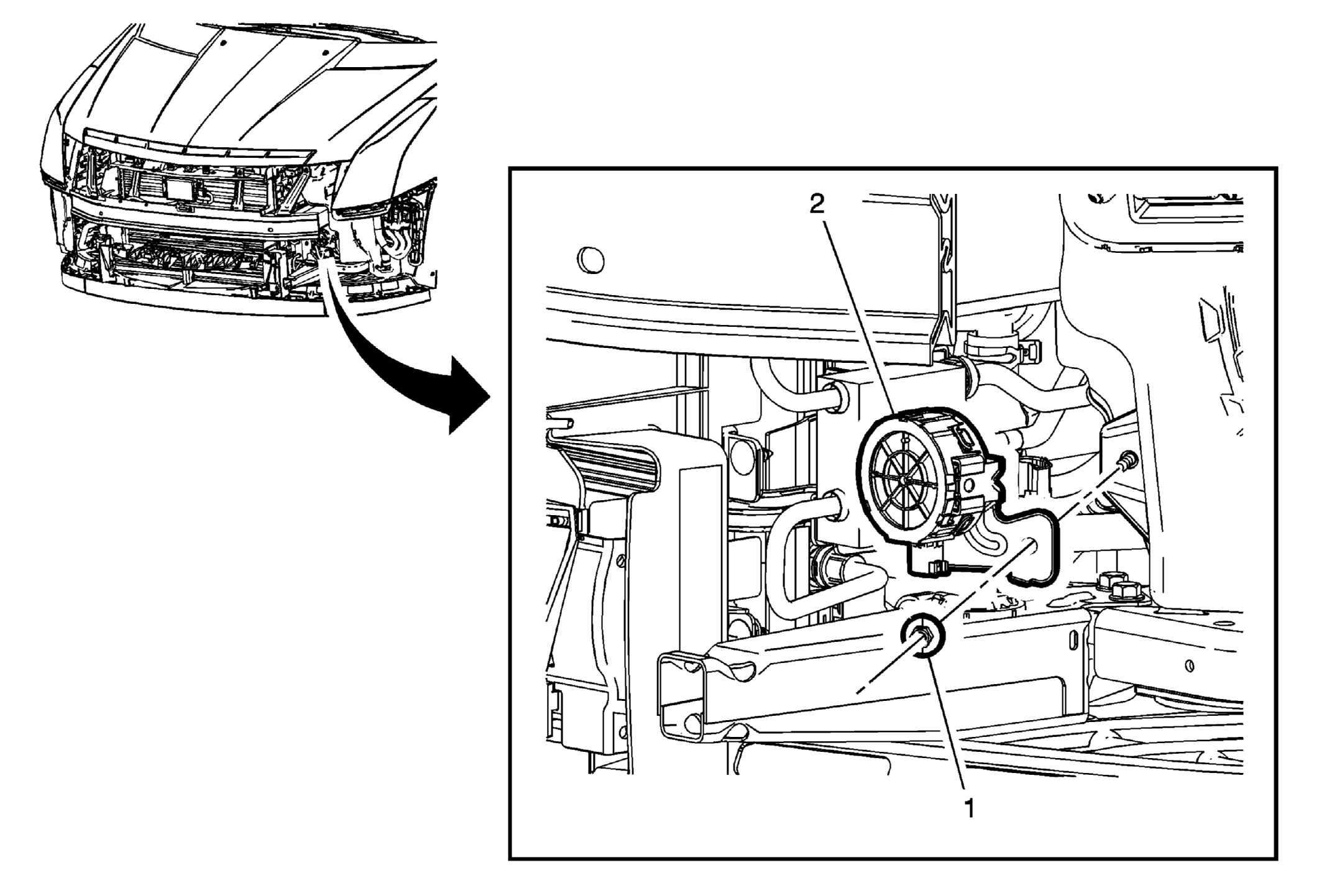

Fig 1: Pedestrian Sound Alert Speaker
GM3612642Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front wheelhouse liner - left side. Refer to Front Wheelhouse Liner Replacement .
1 Pedestrian Sound Alert Speaker Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Pedestrian Sound Alert Speaker
Procedure
Disconnect the electrical connector.
