Engine Compartment Components - Front

Engine Compartment Components - Front

Items
1. B202 Hybrid/EV Electronics Coolant Temperature Sensor B202 Hybrid/EV Electronics Coolant Temperature Sensor
2. G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
3. B258 Hybrid/EV Battery Coolant Level Switch B258 Hybrid/EV Battery Coolant Level Switch
4. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
5. G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right
6. B203 Engine Coolant Radiator Temperature Sensor B203 Engine Coolant Radiator Temperature Sensor
7. G37 Hybrid/EV Battery Pack Coolant Pump G37 Hybrid/EV Battery Pack Coolant Pump

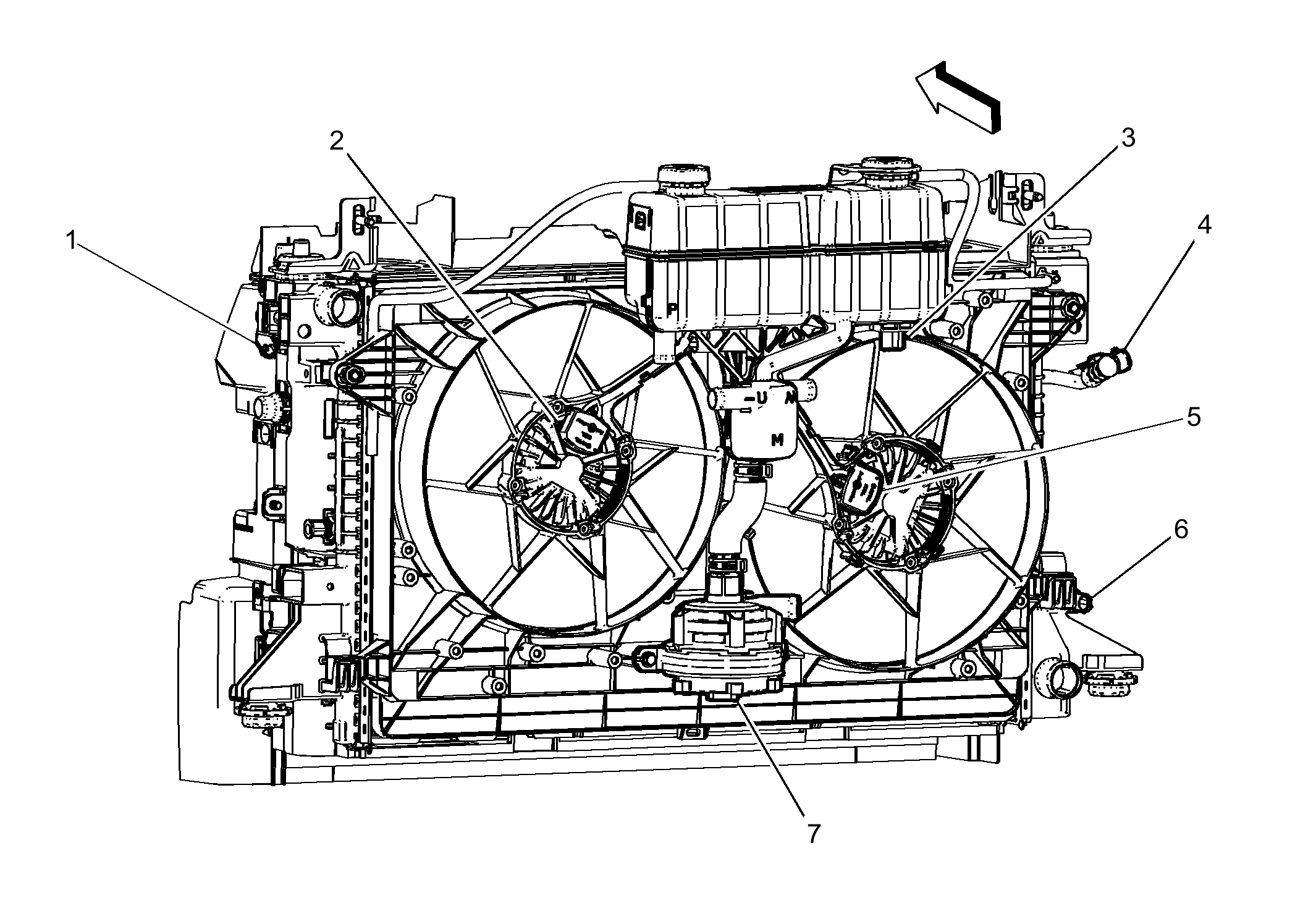

Fig 1: Engine Compartment Components - Front
GM3682067Courtesy of GENERAL MOTORS COMPANY
