Engine Compartment Components - Left

Items
1. Q66 Passenger Compartment Heater Coolant Control Valve Q66 Passenger Compartment Heater Coolant Control Valve
2. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
3. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
4. X50B Fuse Block - Underhood Auxiliary X50B Fuse Block - Underhood Auxiliary X1 X50B Fuse Block - Underhood Auxiliary X2
5. M75L Windshield Wiper Motor Module - Left M75L Windshield Wiper Motor Module - Left
6. F103 Power Inverter Module Assembly Cable Cover F103 Power Inverter Module Assembly Cable Cover
7. B162LF Vertical Body Acceleration Sensor - Left Front B162LF Vertical Body Acceleration Sensor - Left Front
8. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 X50A Fuse Block - Underhood X4
9. T6 Power Inverter Module T6 Power Inverter Module X1 T6 Power Inverter Module X2 T6 Power Inverter Module X3 T6 Power Inverter Module X4
10. B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front

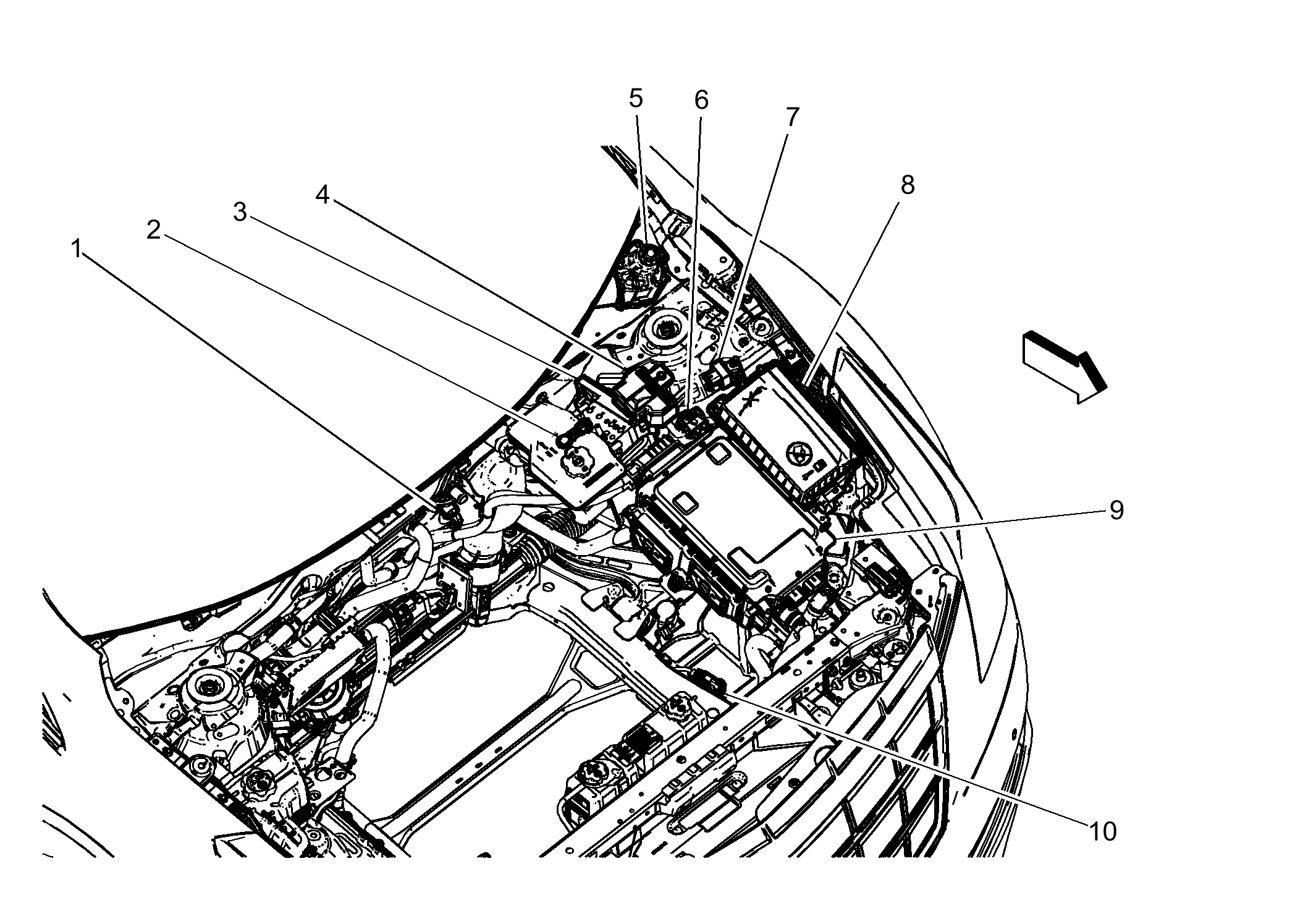

Fig 1: Engine Compartment Components - Left

Courtesy of GENERAL MOTORS COMPANY
