Front Wheel Housing Components - Left

Front Wheel Housing Components - Left

Items
1. K20 Engine Control Module K20 Engine Control Module X1
2. P12L Horn - Left P12L Horn - Left
3. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
4. G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid/EV Electronics Coolant Pump

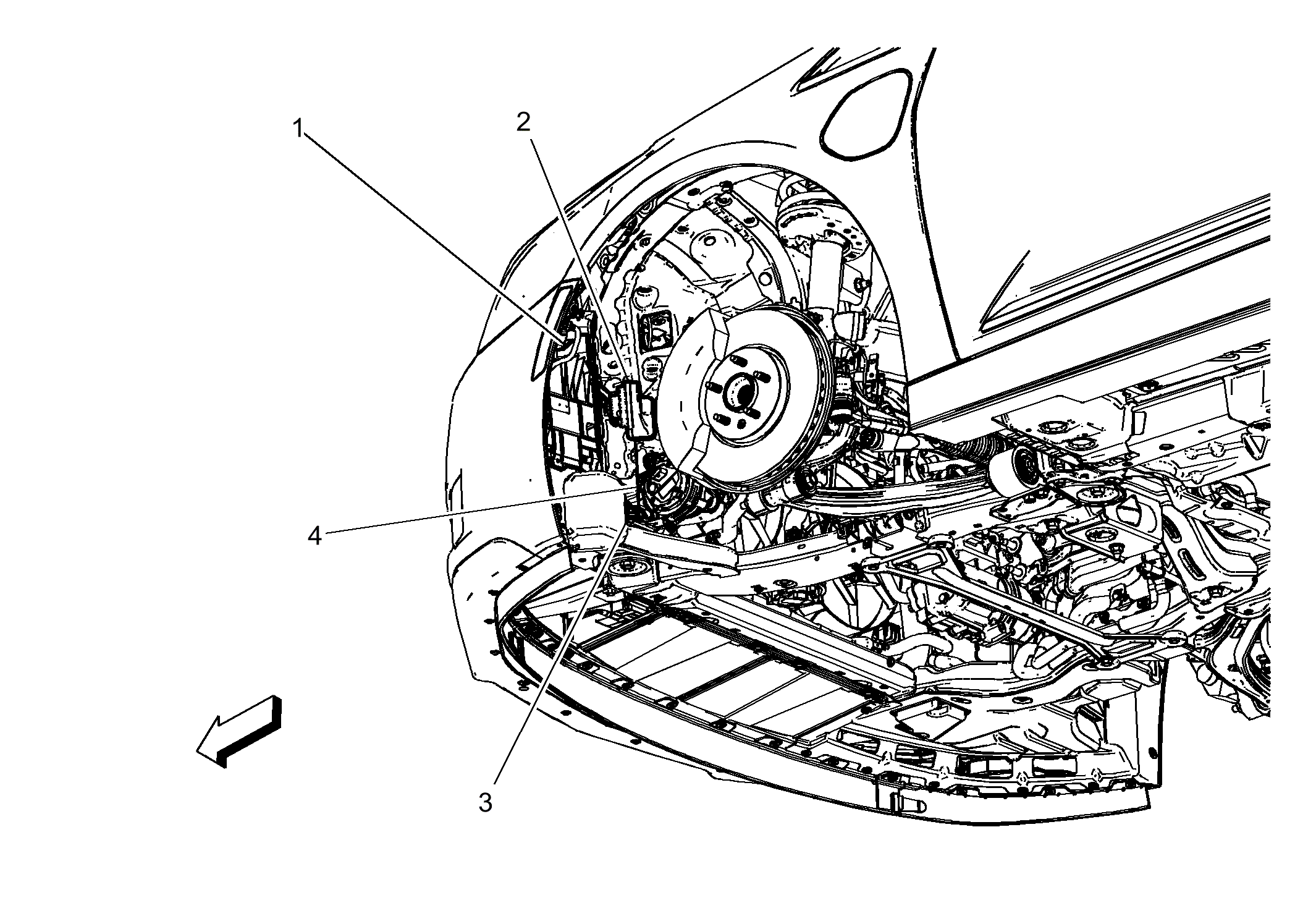

Fig 1: Front Wheel Housing Components - Left
GM3682063Courtesy of GENERAL MOTORS COMPANY
