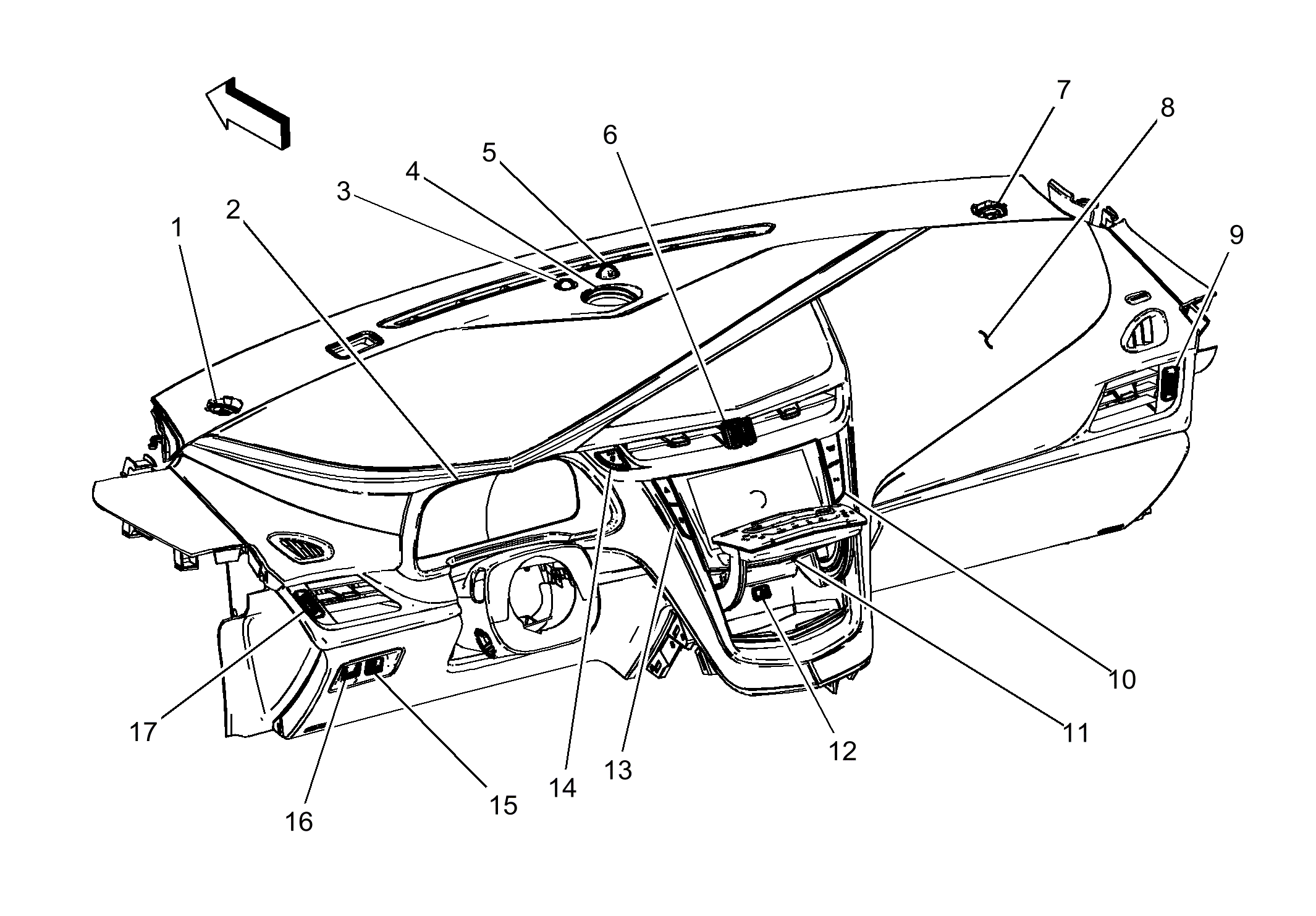

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Items |
|---|
| 1. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 2. P16 Instrument Cluster P16 Instrument Cluster |
| 3. P36 Battery State of Charge Indicator P36 Battery State of Charge Indicator |
| 4. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel |
| 5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 6. Q81M Air Outlet Controls - Instrument Panel Middle Q81M Air Outlet Controls - Instrument Panel Middle |
| 7. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 8. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 9. Q81R Air Outlet Controls - Instrument Panel Right Q81R Air Outlet Controls - Instrument Panel Right |
| 10. S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel |
| 11. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2 |
| 12. X92 USB Receptacle X92 USB Receptacle |
| 13. S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel |
| 14. S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch |
| 15. S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch |
| 16. S91 Park Brake Control Switch S91 Park Brake Control Switch |
| 17. Q81L Air Outlet Controls - Instrument Panel Left Q81L Air Outlet Controls - Instrument Panel Left |
