K20 Engine Control Module X2

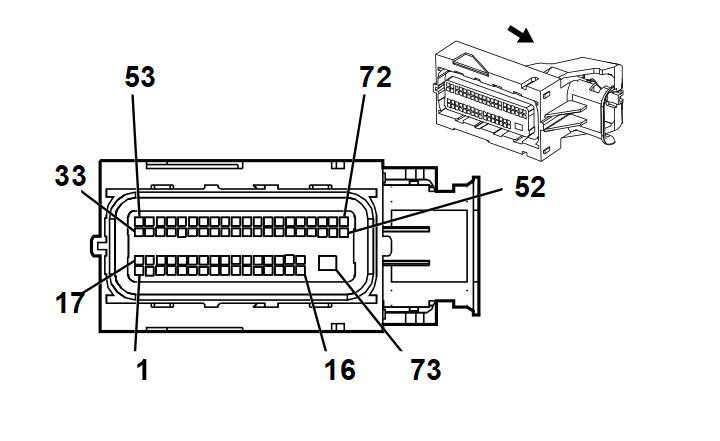

GM1968294
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 34566-5163
  • Service Connector: 13574947
  • Description: 73-Way F 0.64, 2.8 Series, Sealed (BK with BK Terminal Position Assurance)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13576392 J-35616-4A (PU) J-38125-12A Not Available Not Available Not Available Not Available
II 19301532 J-35616-64B (LT BU) J-38125-213 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 L-BU/VT 2121 Ignition Control 1 II -
2 0.5 L-GN/YE 1744 Fuel Injector Control 1 II -
3 0.5 BN/VT 1746 Fuel Injector Control 3 II -
4 0.5 BN/YE 844 Fuel Injector Control 4 II -
5 0.5 YE/WH 1745 Fuel Injector Control 2 II -
6 - 9 - - - Not Occupied - -
10 0.5 GY/L-BU 5282 Camshaft Phaser Exhaust Solenoid 1 II -
11 0.5 VT/BN 5284 Camshaft Phaser Intake Solenoid 1 II -
12 - 13 - - - Not Occupied - -
14 0.5 L-BU 6814 Thermostat Engine Cool Control II -
15 20 YE 581 Throttle Actuator Control Open II -
16 20 BN/WH 582 Throttle Actuator Control Close II -
17 0.75 L-GN/L-BU 2123 Ignition Control 3 II -
18 - 19 - - - Not Occupied - -
20 0.5 BK/VT 6272 Crankshaft 60X Sensor Low Reference II -
21 0.5 BK/GY 5296 Camshaft Position Exhaust Sensor Low Reference 1 II -
22 - 23 - - - Not Occupied - -
24 0.5 BK/L-GN 5301 Camshaft Position Intake Sensor Low Reference 1 II -
25 - 27 - - - Not Occupied - -
28 0.75 VT/L-BU 5290 Powertrain Main Relay Fused Supply 1 II -
29 0.5 BK/BN 6753 Cam Phaser W Low Reference II -
30 0.5 BK/VT 6754 Cam Phaser X Low Reference II -
31 0.75 YE/L-BU 231 Oil Pressure Switch Signal II -
32 - - - Not Occupied - -
33 0.75 YE/L-BU 2124 Ignition Control 4 II -
34 - - - Not Occupied - -
35 0.75 BK/GY 453 Ignition Control Low Reference II -
36 0.5 VT/L-BU 6270 Crankshaft 60X Sensor 5V Reference II -
37 0.5 GY/YE 5297 Camshaft Position Exhaust Sensor Control 1 II -
38 - 39 - - - Not Occupied - -
40 0.5 GY/L-BU 5300 Camshaft Position Intake Sensor Control 1 II -
41 - 42 - - - Not Occupied - -
43 20 BN/RD 2701 Throttle Position Sensor 5V Reference II -
44 20 BK/BN 2752 Throttle Position Sensor Low Reference II -
45 - 46 - - - Not Occupied - -
47 18 VT/GY 3110 Heated Oxygen Sensor High Signal Bank 1 Sensor 1 II -
48 - - - Not Occupied - -
49 0.5 BK/YE 1716 Knock Sensor Low Reference 1 II -
50 - 52 - - - Not Occupied - -
53 0.75 L-BU/WH 2122 Ignition Control 2 II -
54 - 55 - - - Not Occupied - -
56 0.5 L-GN 6271 Crankshaft 60X Sensor Signal II -
57 0.5 VT/BK 5273 Camshaft Position Exhaust Sensor 1 II -
58 - 59 - - - Not Occupied - -
60 0.5 YE/VT 5275 Camshaft Position Intake Sensor 1 II -
61 - 62 - - - Not Occupied - -
63 20 BN/L-GN 485 Throttle Position Sensor Signal 1 II -
64 - - - Not Occupied - -
65 20 BN/L-BU 486 Throttle Position Sensor Signal 2 II -
66 - - - Not Occupied - -
67 18 WH/BK 3111 Heated Oxygen Sensor Low Signal Bank 1 Sensor 1 II -
68 - - - Not Occupied - -
69 0.5 VT/GY 496 Knock Sensor Signal 1 II -
70 - 71 - - - Not Occupied - -
72 18 GY/WH 3113 Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 1 II -
73 2 BK 250 Ground I -
