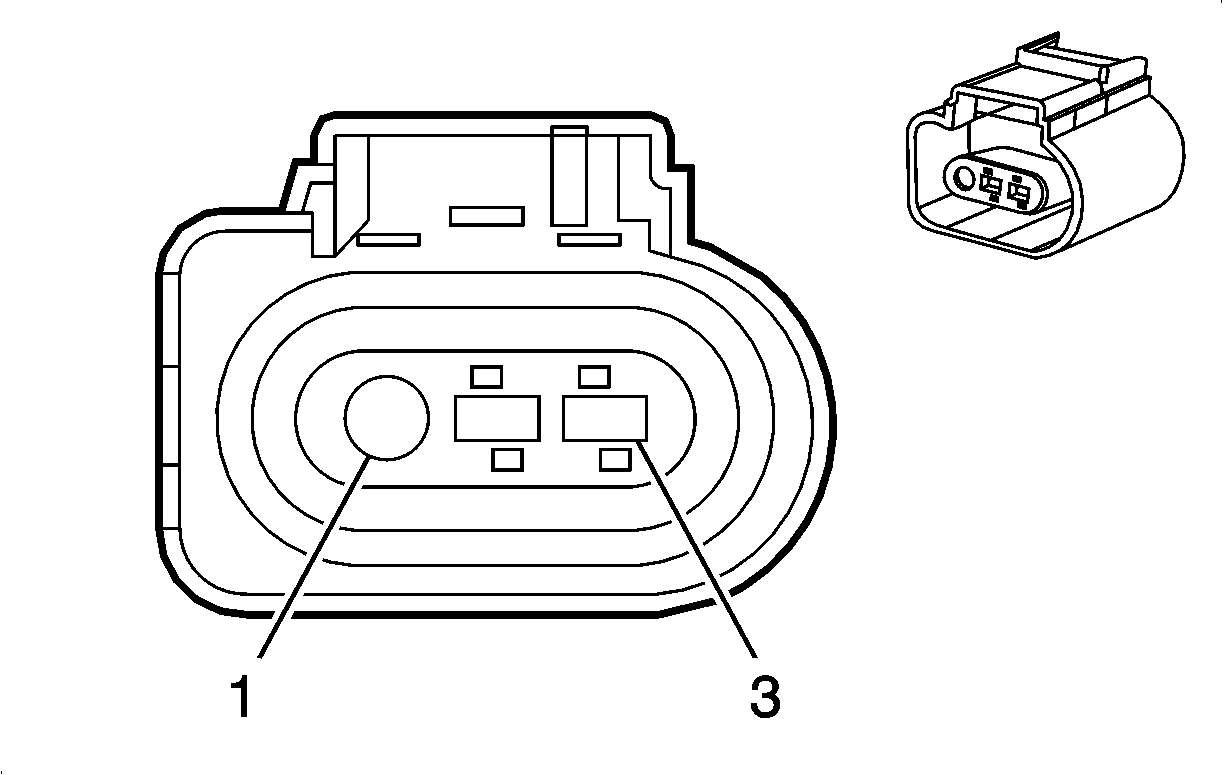

K43 Power Steering Control Module X3
|
|
Connector Part Information
- Harness Type: Power Steering
- OEM Connector: 2-1563453-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
GN |
6632 |
Torque Input Sensor Low Reference |
I |
- |
| 3 |
0.35 |
BN |
6631 |
Torque Input Sensor High Reference |
I |
- |
