Forward Range Radar Bracket Replacement

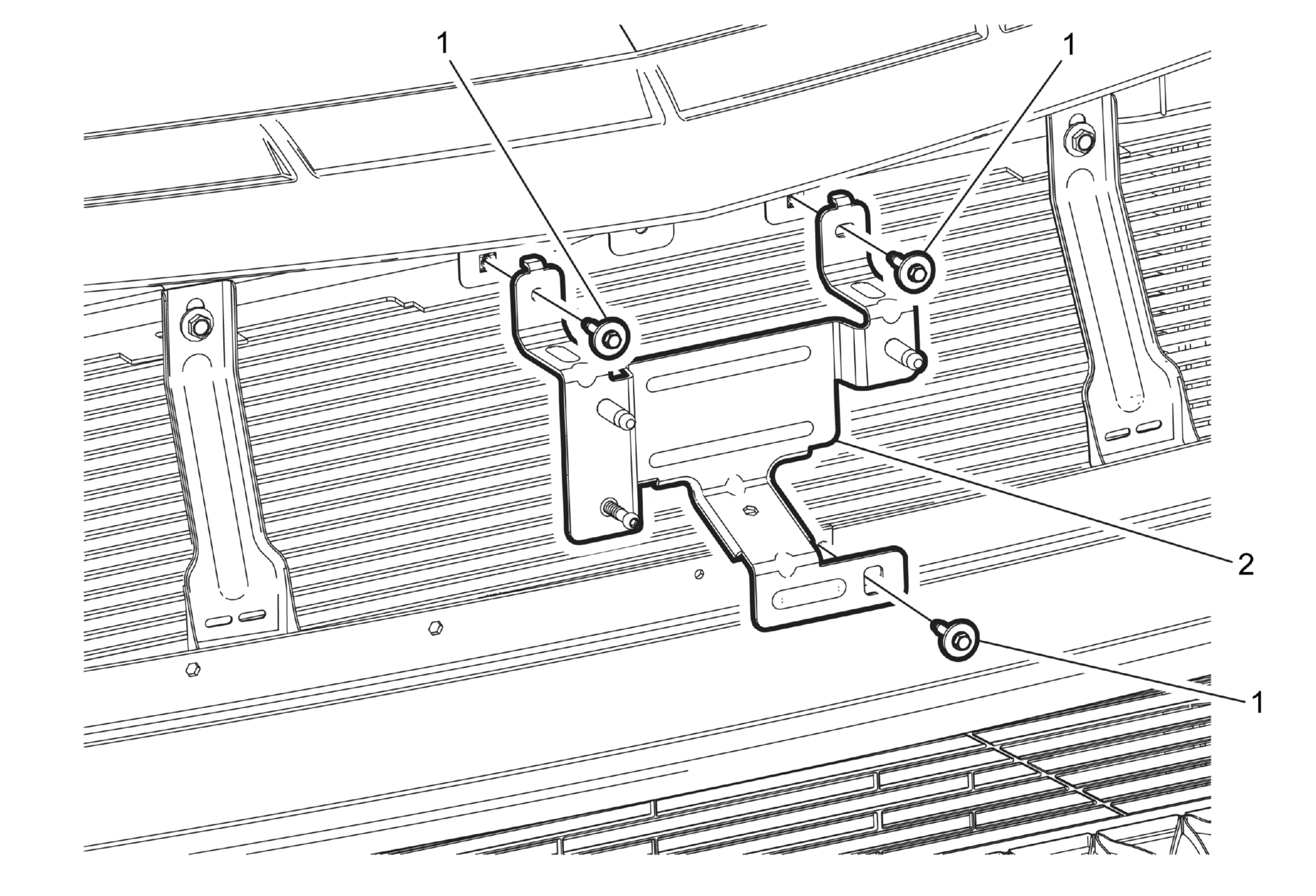

Fig 1: Forward Range Radar Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Always use care when handling the forward range radar module and bracket. Improper handling can cause damage to the module or bracket and affect the functionality of the system. Preliminary Procedures Remove the forward range radar module. Refer to Forward Range Radar Module Replacement . Replace the 3 ball sockets from the forward range radar module. Inspect the forward range radar module. Refer to Forward Range Radar Module Inspection .
1	Forward Range Radar Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Bracket

Callout

Component Name

CAUTION:

Always use care when handling the forward range radar module and bracket. Improper handling can cause damage to the module or bracket and affect the functionality of the system.

Preliminary Procedures

Remove the forward range radar module. Refer to Forward Range Radar Module Replacement .
Replace the 3 ball sockets from the forward range radar module.
Inspect the forward range radar module. Refer to Forward Range Radar Module Inspection .

Forward Range Radar Bracket Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Forward Range Radar Bracket
