Radio Replacement

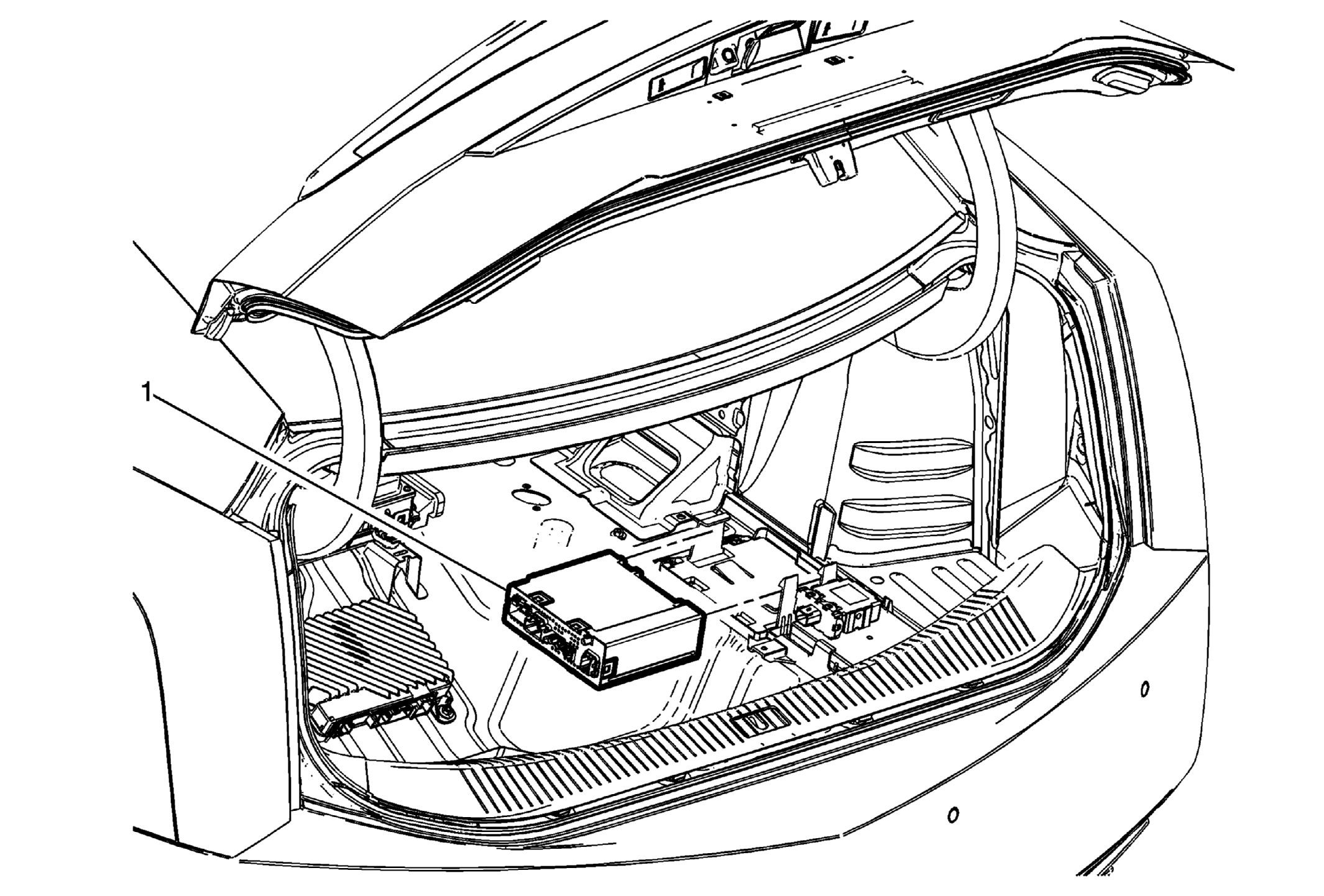

Fig 1: Radio
GM3611419Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement
  2. Reposition the rear portion of the rear compartment side trim panel - right side. Refer to Rear Compartment Side Trim Replacement - Right Side .
1 Radio

Procedure

  1. Disconnect the electrical connections.
  2. Release the module from the electronic suspension control bracket.
  3. Refer to Control Module References for programming and setup information.
