Fuse Block Cover Replacement

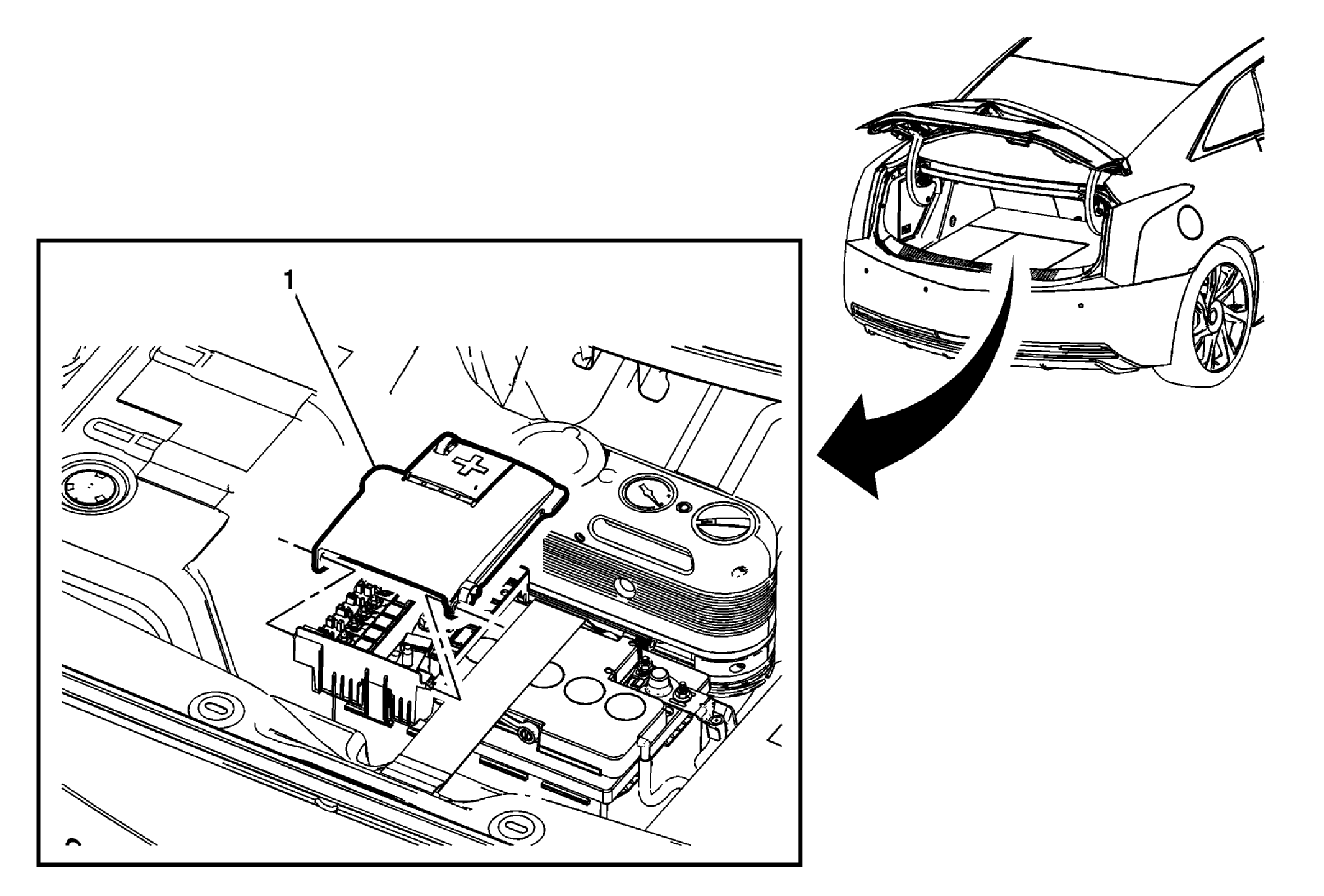

Fig 1: Fuse Block Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel front trim. Refer to Rear Compartment Floor Panel Front Trim Replacement Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement
1	Fuse Block Cover Procedure Open the fuse block cover and grasp the cover at each tab at the rear of the cover. Slip each side of the cover over the tab on the fuse block and remove cover from the fuse block.

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor panel front trim. Refer to Rear Compartment Floor Panel Front Trim Replacement
Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement

Fuse Block Cover
Procedure
Open the fuse block cover and grasp the cover at each tab at the rear of the cover. Slip each side of the cover over the tab on the fuse block and remove cover from the fuse block.
