Accessory DC Power Control Module Cooling Air Duct Replacement

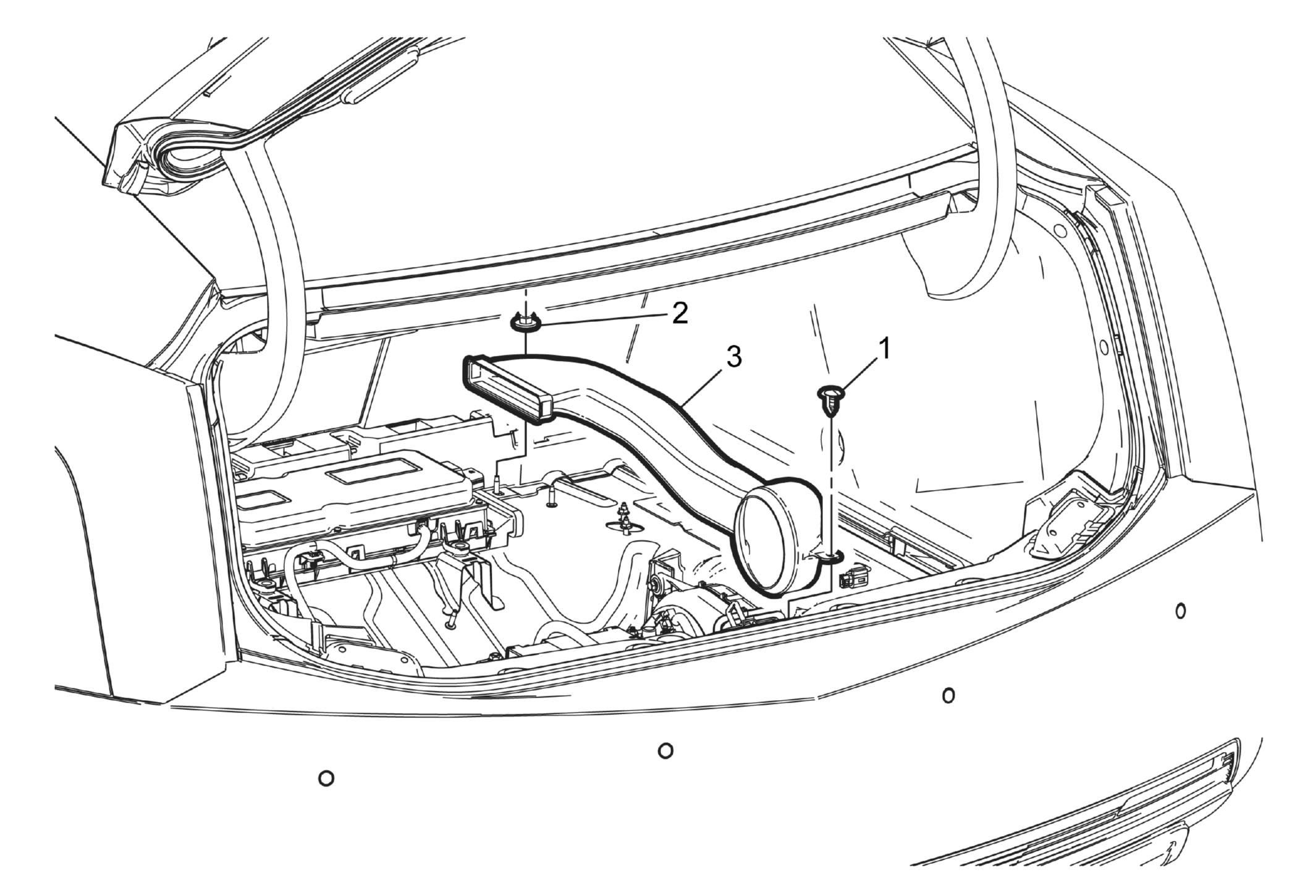

Fig 1: Accessory DC Power Control Module Cooling Air Duct

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure  Remove the floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement .
1	Accessory DC Power Control Module Cooling Air Duct Retainer
2	Accessory DC Power Control Module Cooling Air Duct Fastener CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
3	Accessory DC Power Control Module Cooling Air Duct
