Drive Motor Generator Control Module Tray Replacement
| Call out | Component Name |
|---|---|
| Preliminary Procedure Remove the accessory DC power control module. Refer to Accessory DC Power Control Module Replacement . |
|

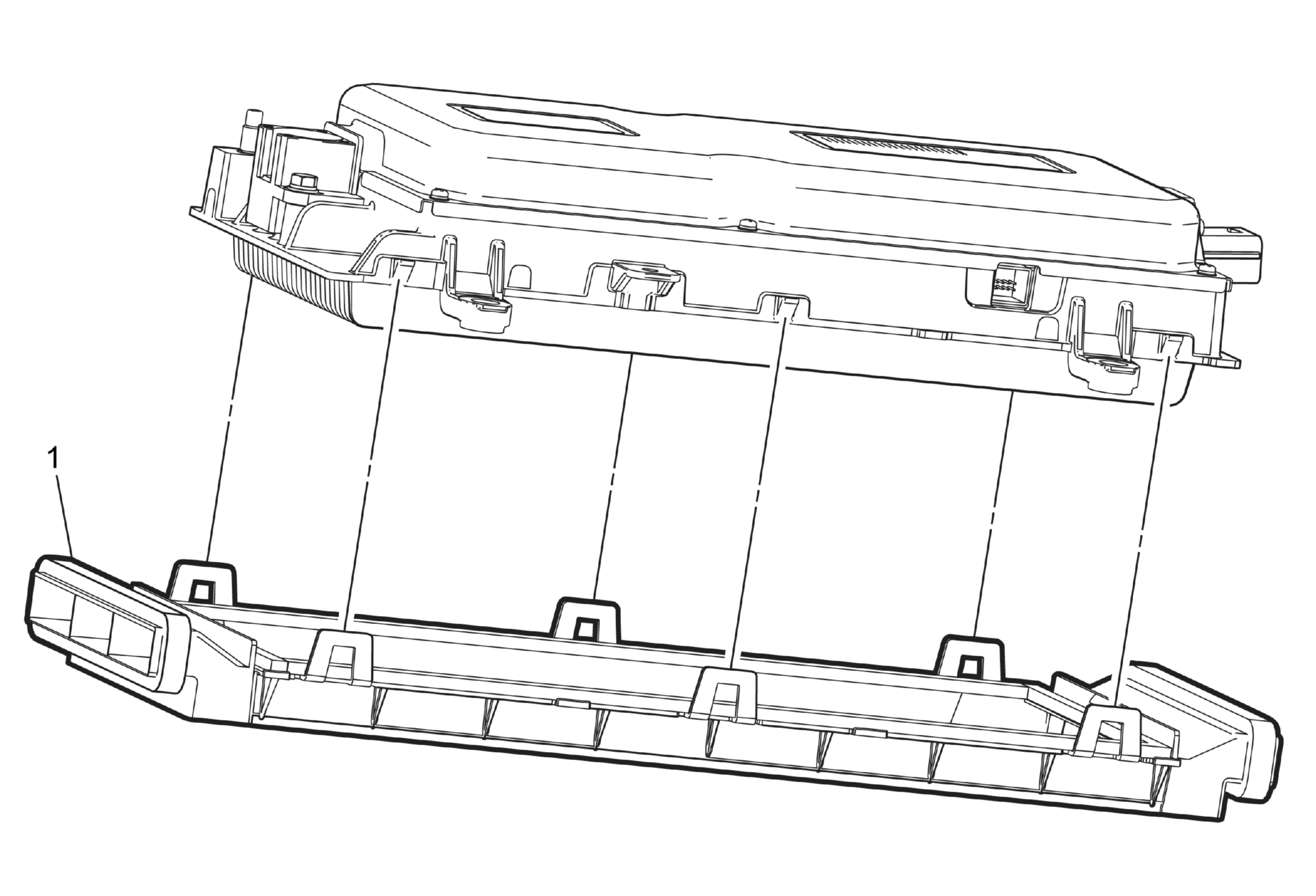

| 1 | Drive Motor Generator Control Module Tray Procedure Un-clip the drive motor generator control module tray from the drive motor generator control module. |
