Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement (Cadillac)

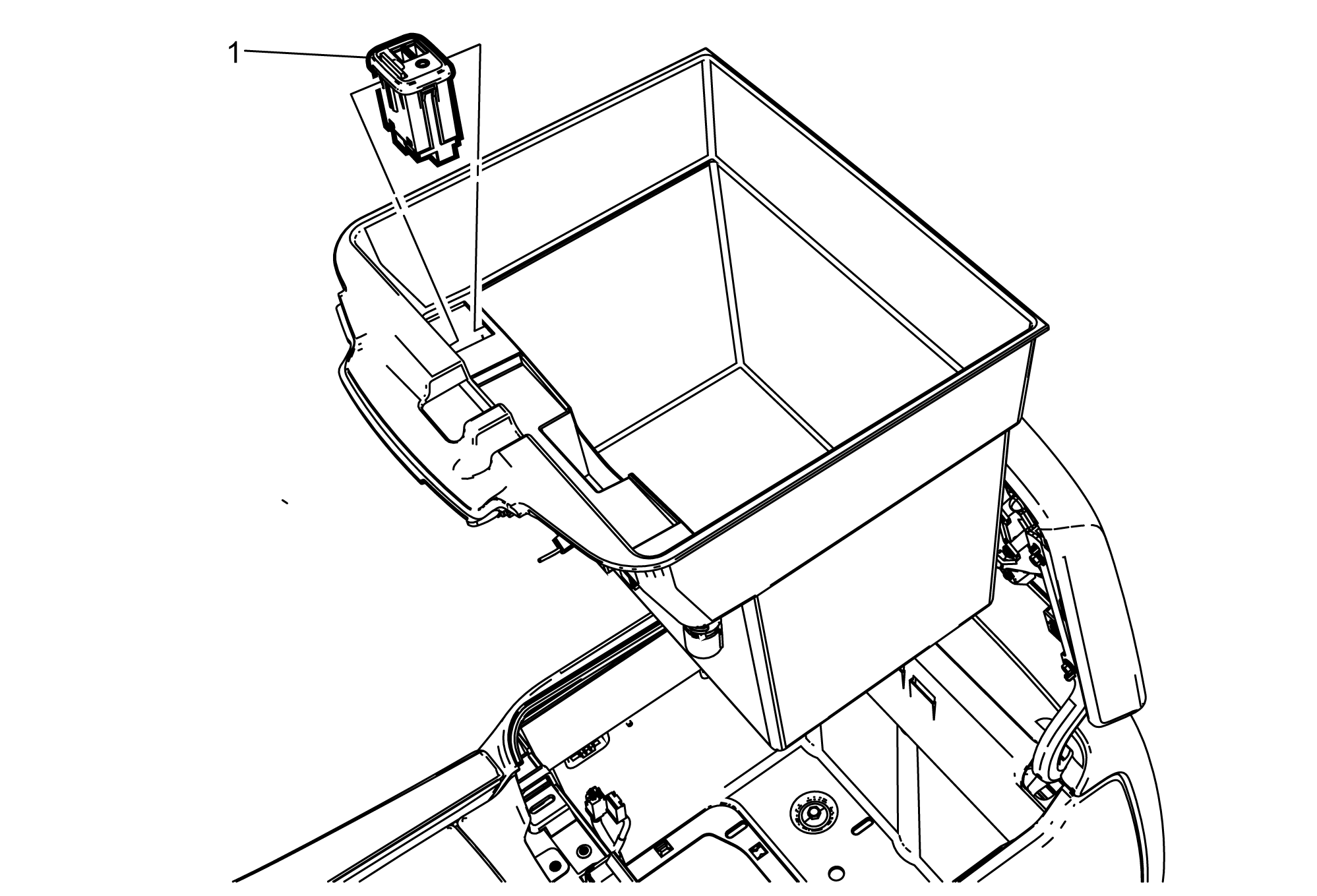

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Cadillac) . Remove the front floor console center compartment, if equipped. Refer to Front Floor Console Center Compartment Replacement (Cadillac) .
1	Audio Player, USB, Auxiliary In, and Memory Card Receptacle Procedure Depress the tabs on the receptacle to remove.

Callout

Component Name

Preliminary Procedures

Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Cadillac) .
Remove the front floor console center compartment, if equipped. Refer to Front Floor Console Center Compartment Replacement (Cadillac) .

Audio Player, USB, Auxiliary In, and Memory Card Receptacle
Procedure
Depress the tabs on the receptacle to remove.
