Navigation Signal Splitter Replacement (Chevrolet / GMC)

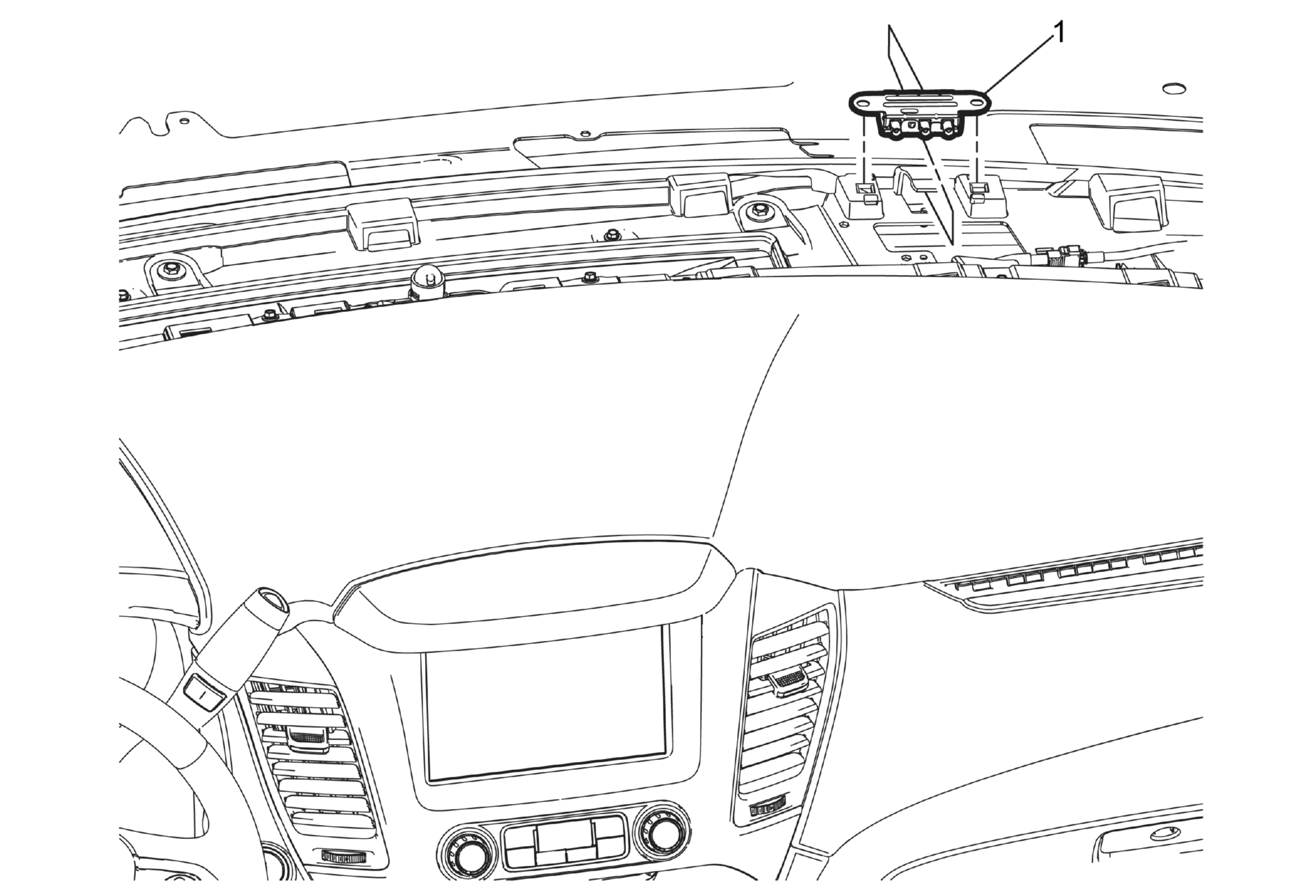

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement (Chevrolet / GMC) .
1	Navigation Signal Splitter Procedure Unclip the wire harness connector retainer and reposition the harness to access the splitter electrical connections. Disconnect the electrical connections. Slide splitter from retaining tabs on the bracket to remove.

Callout

Component Name

Preliminary Procedure
Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement (Chevrolet / GMC) .

Navigation Signal Splitter

Procedure

Unclip the wire harness connector retainer and reposition the harness to access the splitter electrical connections.
Disconnect the electrical connections.
Slide splitter from retaining tabs on the bracket to remove.
