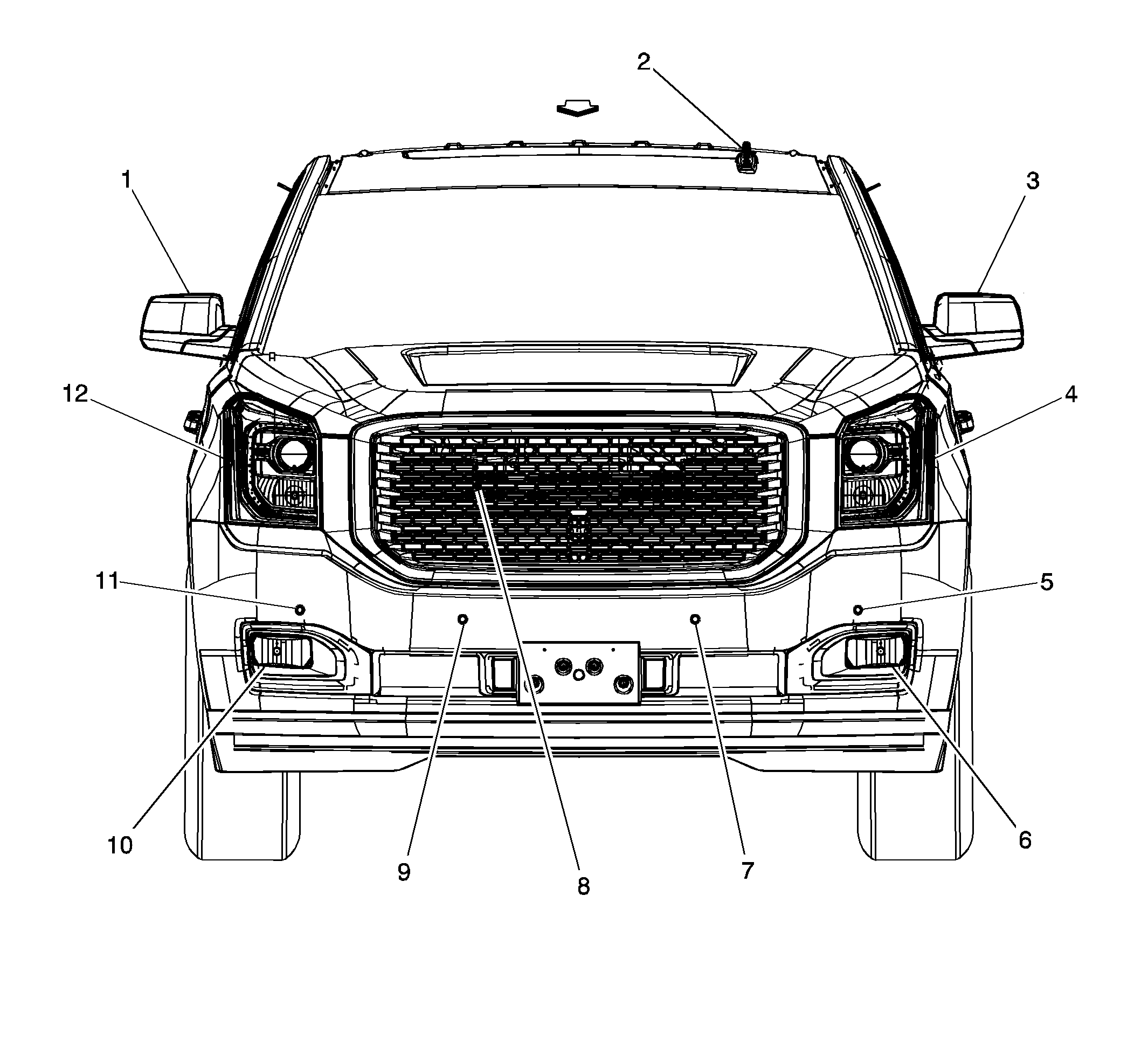

Front of Vehicle Components (Z88)
Front of Vehicle Components (Z88)
| Items |
| 1. A9B Outside Rearview Mirror - Passenger |
| 2. T4G Cellular Phone, Navigation, and Digital Radio Antenna T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (IO6 with UE1 without CV3)T4G Cellular Phone, Navigation, and Digital Radio Antenna X3 (CV3 with UE1)T4G Cellular Phone, Navigation, and Digital Radio Antenna X3 (IO6 without CV3)T4G Cellular Phone, Navigation, and Digital Radio Antenna X4 (U2M)T4G Cellular Phone, Navigation, and Digital Radio Antenna X5 (VV4 without CV3 with UE1) |
| 3. A9A Outside Rearview Mirror - Driver |
| 4. E13LA Headlamp Assembly - Left |
| 5. B78A Front Object Sensor - Left Outer (UD5) B78A Front Object Sensor - Left Outer (UD5) |
| 6. E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (Z88) |
| 7. B78C Front Object Sensor - Left Middle (UD5) B78C Front Object Sensor - Left Middle (UD5) |
| 8. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature SensorB9 Ambient Air Temperature Sensor |
| 9. B78D Front Object Sensor - Right Middle (UD5) B78D Front Object Sensor - Right Middle (UD5) |
| 10. E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (Z88) |
| 11. B78B Front Object Sensor - Right Outer (UD5) B78B Front Object Sensor - Right Outer (UD5) |
| 12. E13RA Headlamp Assembly - Right |
Courtesy of GENERAL MOTORS COMPANY
