Back of Instrument Panel Components (X88/Z88 with D07)

Items
1. E35R Exterior Spot Lamp - Right (7X7) E35R Exterior Spot Lamp - Right (7X7)
2. K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1 (IO5/IO6)K74 Human Machine Interface Control Module X2 (IO5/IO6)
3. T15 Navigation Antenna Signal Splitter (IO6 with UE1) T15 Navigation Antenna Signal Splitter X1 (IO6 with UE1)T15 Navigation Antenna Signal Splitter X2 (IO6 with UE1)T15 Navigation Antenna Signal Splitter X3 (IO6 with UE1)
4. P19B Speaker - Center Instrument Panel (UQH or UQS) P19B Speaker - Center Instrument Panel (UQH/UQS)
5. P43 Collision Alert Indicators (UEU, UFL or UHX without UV6) P43 Collision Alert Indicators (UEU/UFL-UV6)
6. E35L Exterior Spot Lamp - Left (7X6 or 7X7) E35L Exterior Spot Lamp - Left (7X6/7X7)
7. K9 Body Control Module K9 Body Control Module X1
8. X84 Data Link Connector X84 Data Link Connector
9. E1AA Floor Accent Lamp - Left Front E1AA Floor Accent Lamp - Left Front
10. T1 Accessory DC/AC Power Inverter Module (KI4 or KI5) T1 Accessory DC/AC Power Inverter Module T1 Accessory DC/AC Power Inverter Module (KI5)
11. A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X6 (U2M)A11 Radio X7 (IO3)
12. E1AB Floor Accent Lamp - Right Front E1AB Floor Accent Lamp - Right Front

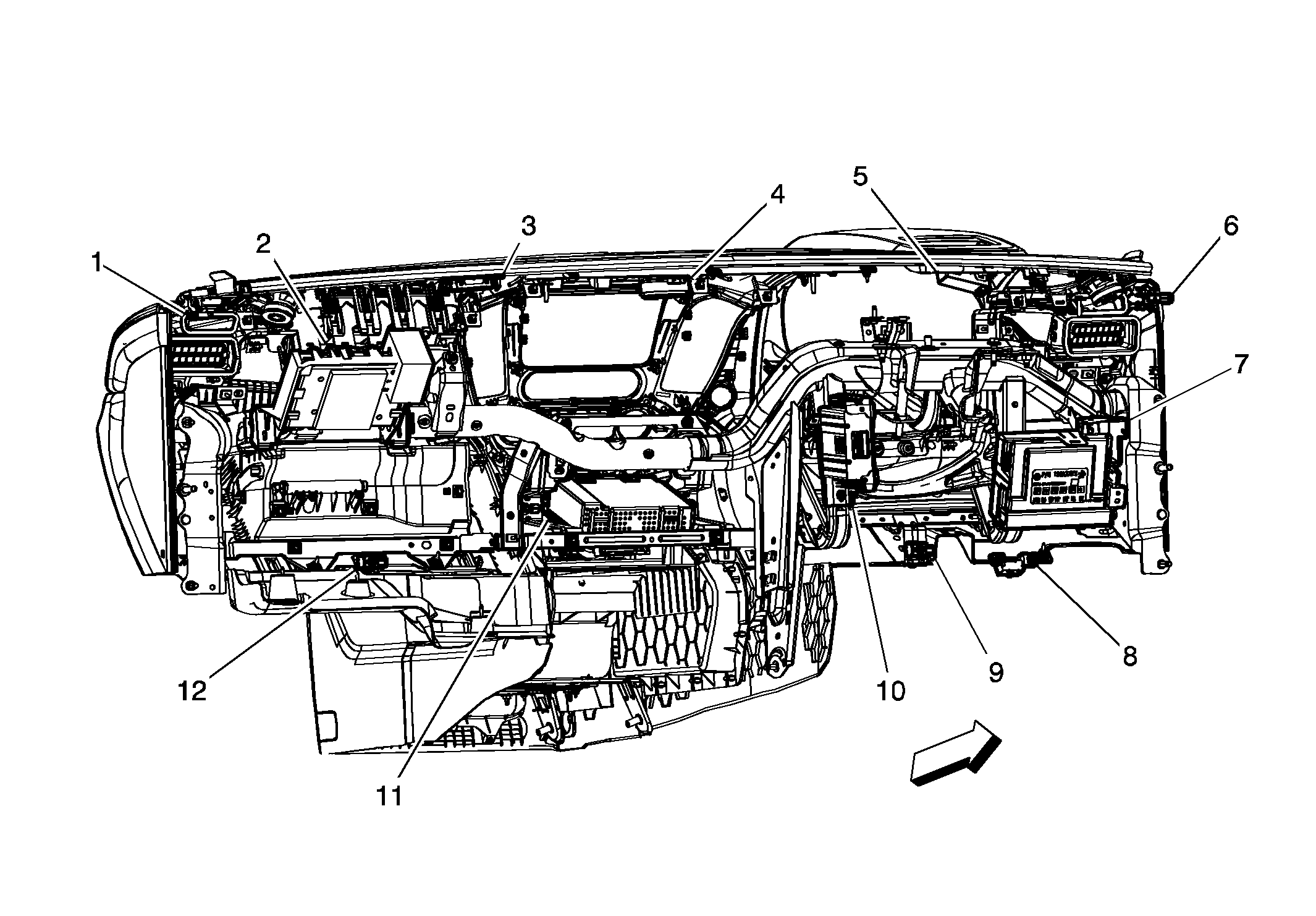

Fig 1: Back of Instrument Panel Components (X88/Z88 with D07)

Courtesy of GENERAL MOTORS COMPANY
