Navigation Power, Ground, Serial Data, and Signals (NQU)

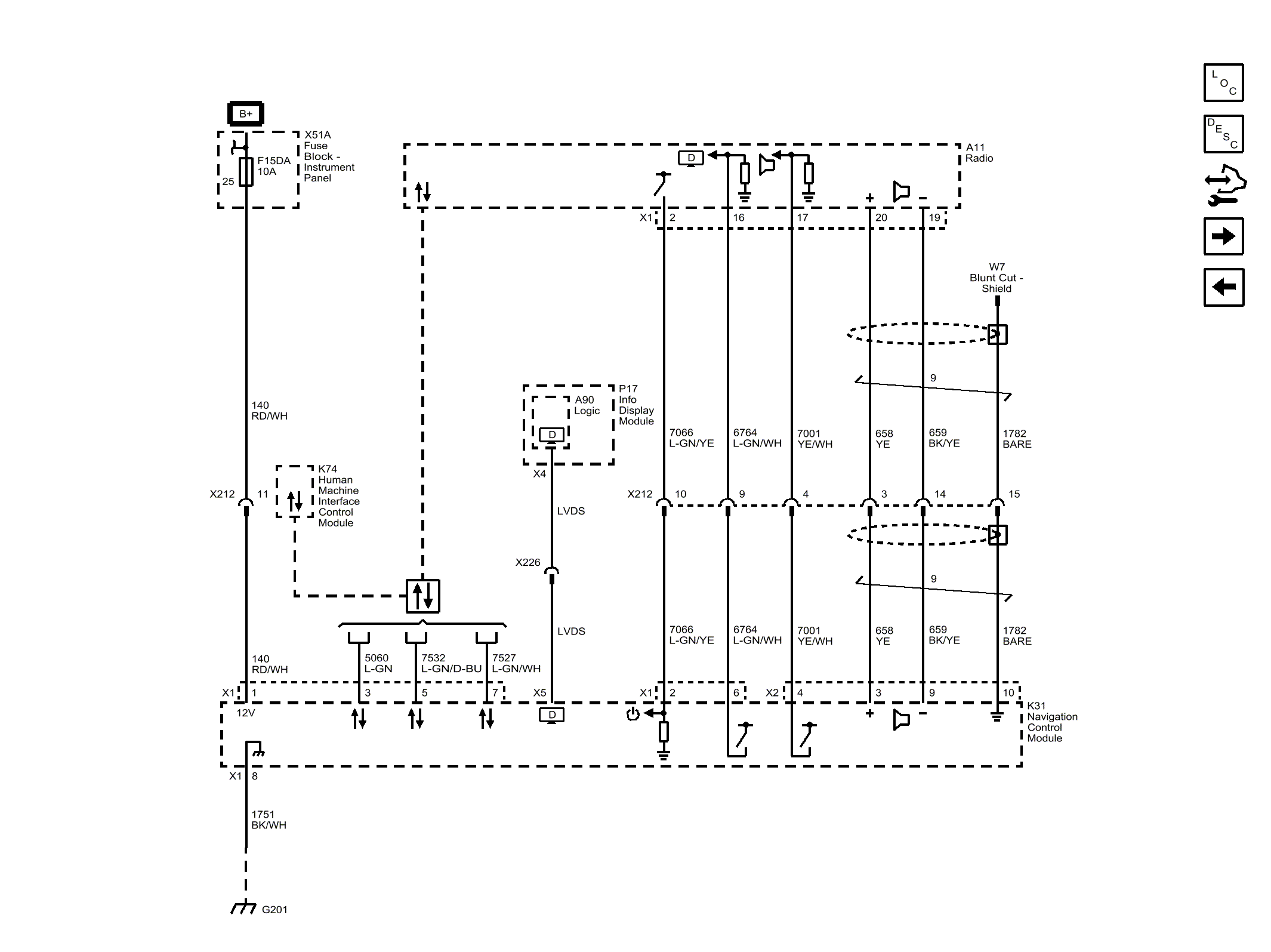

Fig 1: Navigation Power, Ground, Serial Data, and Signals (NQU)
GM4082968Courtesy of GENERAL MOTORS COMPANY
