Radio, Amplifier, and Info Display Module Power, Ground and Data Communication

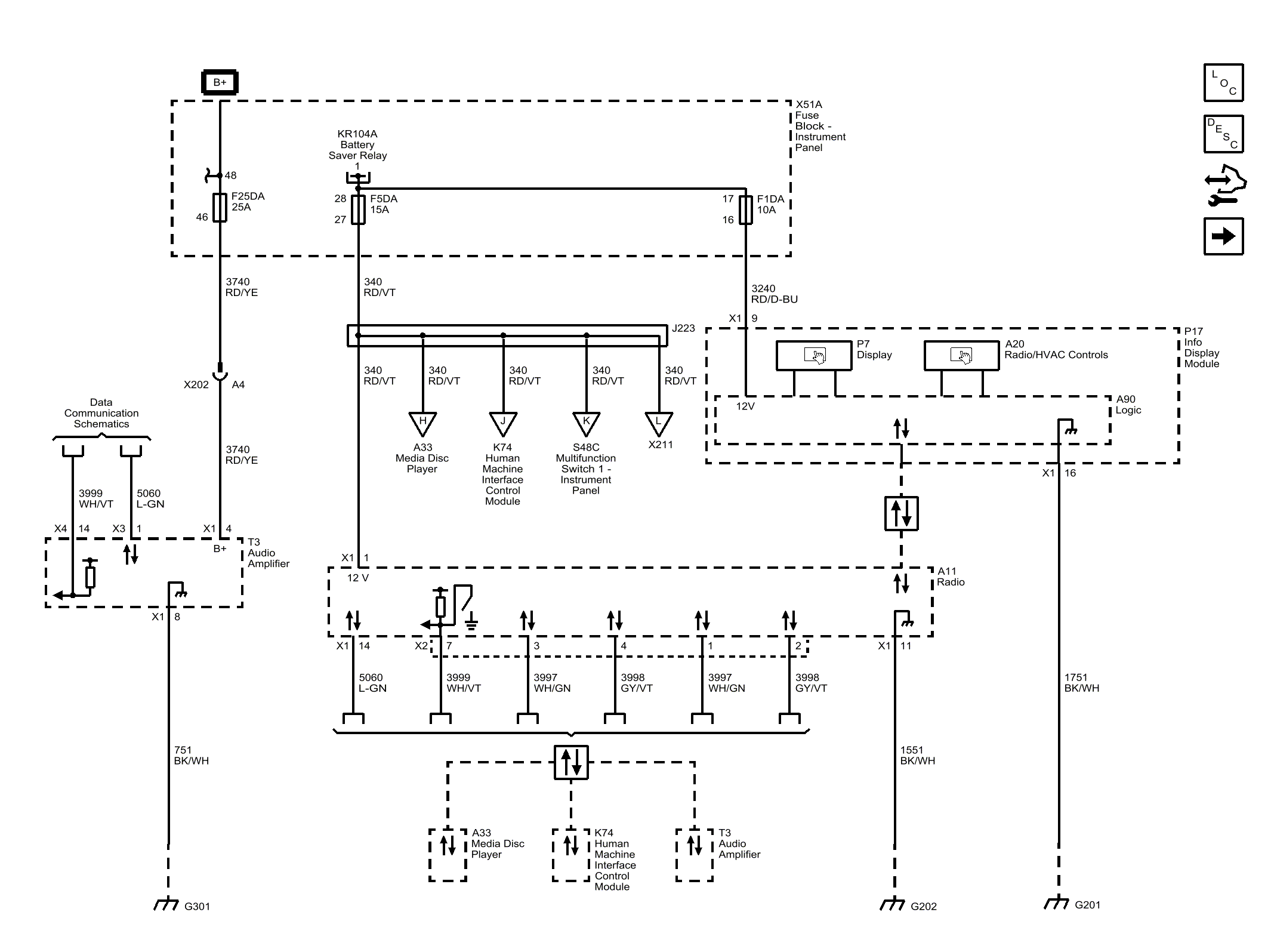

Fig 1: Radio, Amplifier, and Info Display Module Power, Ground and Data Communication
GM4082853Courtesy of GENERAL MOTORS COMPANY
