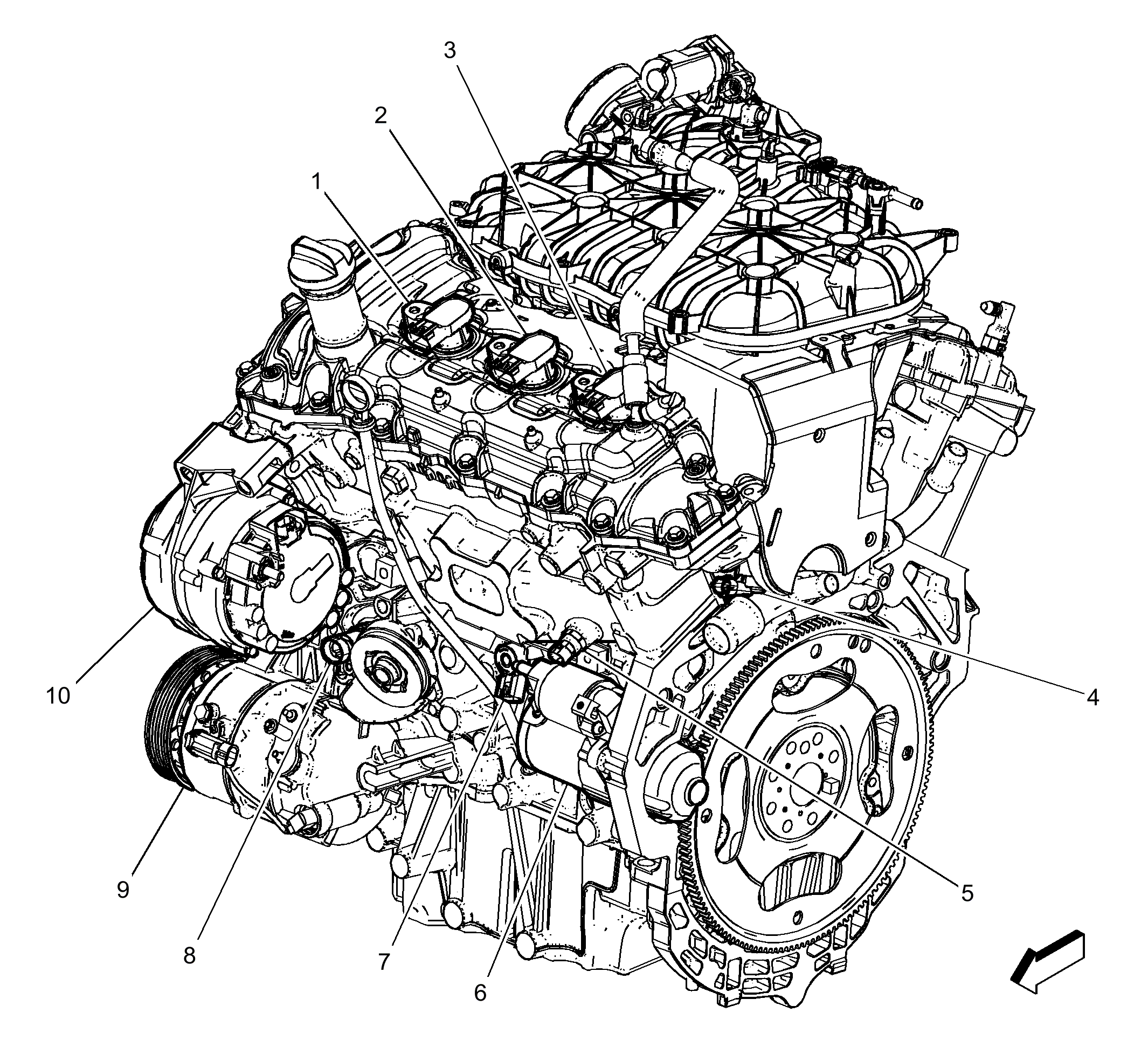

Front of the Engine Components
Front of the Engine Components
| Items |
|---|
| 1. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 2. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 3. T8F Ignition Coil 6 T8F Ignition Coil 6 |
| 4. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 5. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor |
| 6. M64 Starter Motor M64 Starter Motor |
| 7. B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 8. B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch |
| 9. G1 A/C Compressor |
| 10. G13 Generator G13 GeneratorG13 Generator |
