Liftgate Release System Components

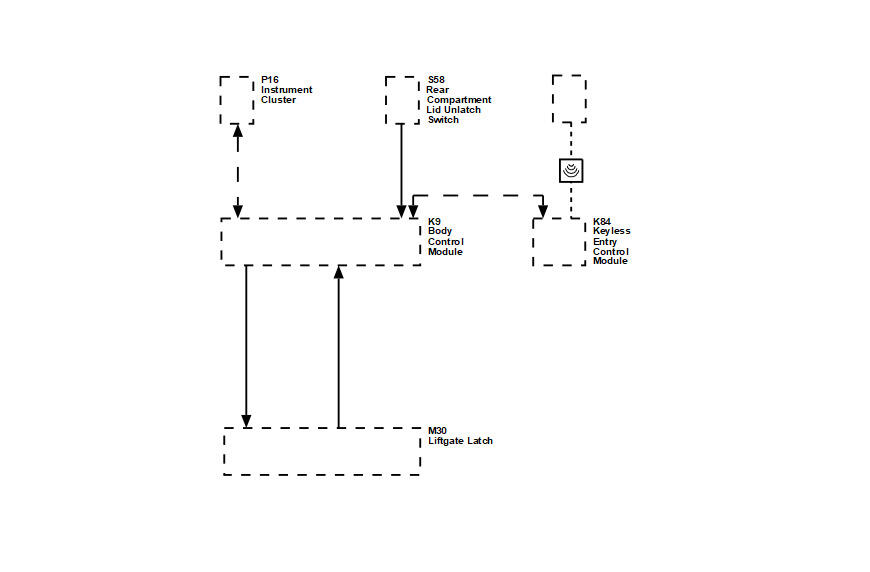

Fig 1: Liftgate Release TB4 Block Diagram
GM3512706Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
P16 P16 Instrument Cluster
S58 S58 Rear Compartment Lid Unlatch Switch
K9 K9 Body Control Module
K84 K84 Keyless Entry Control Module
M30 M30 Liftgate Latch
