Liftgate Close Switch Replacement

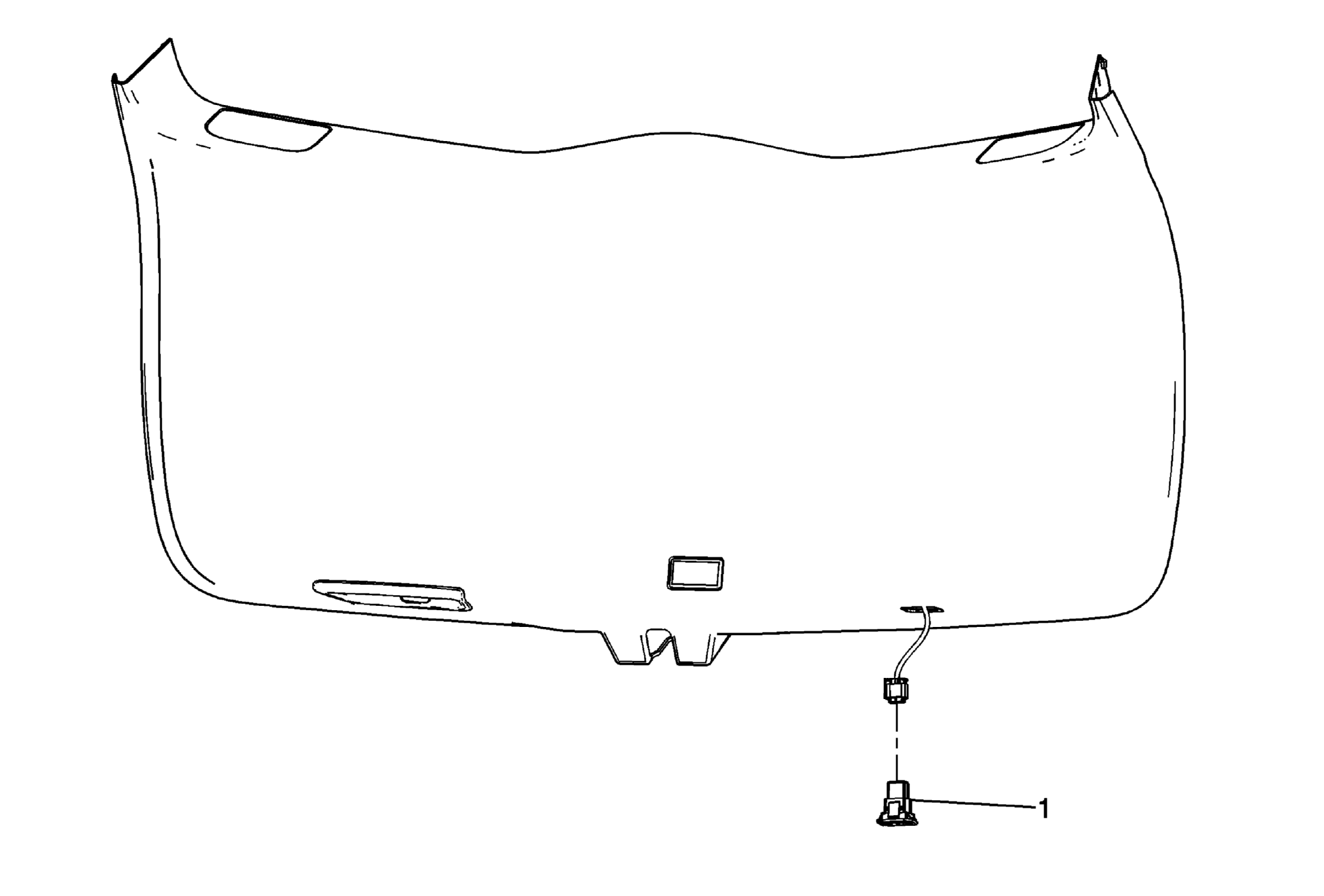

Fig 1: Liftgate Close Switch
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Liftgate Close Switch
Procedure
Disconnect the electrical connector.
Use the appropriate plastic trim tool to remove the liftgate close switch from the trim panel.
