Liftgate Release Switch Replacement

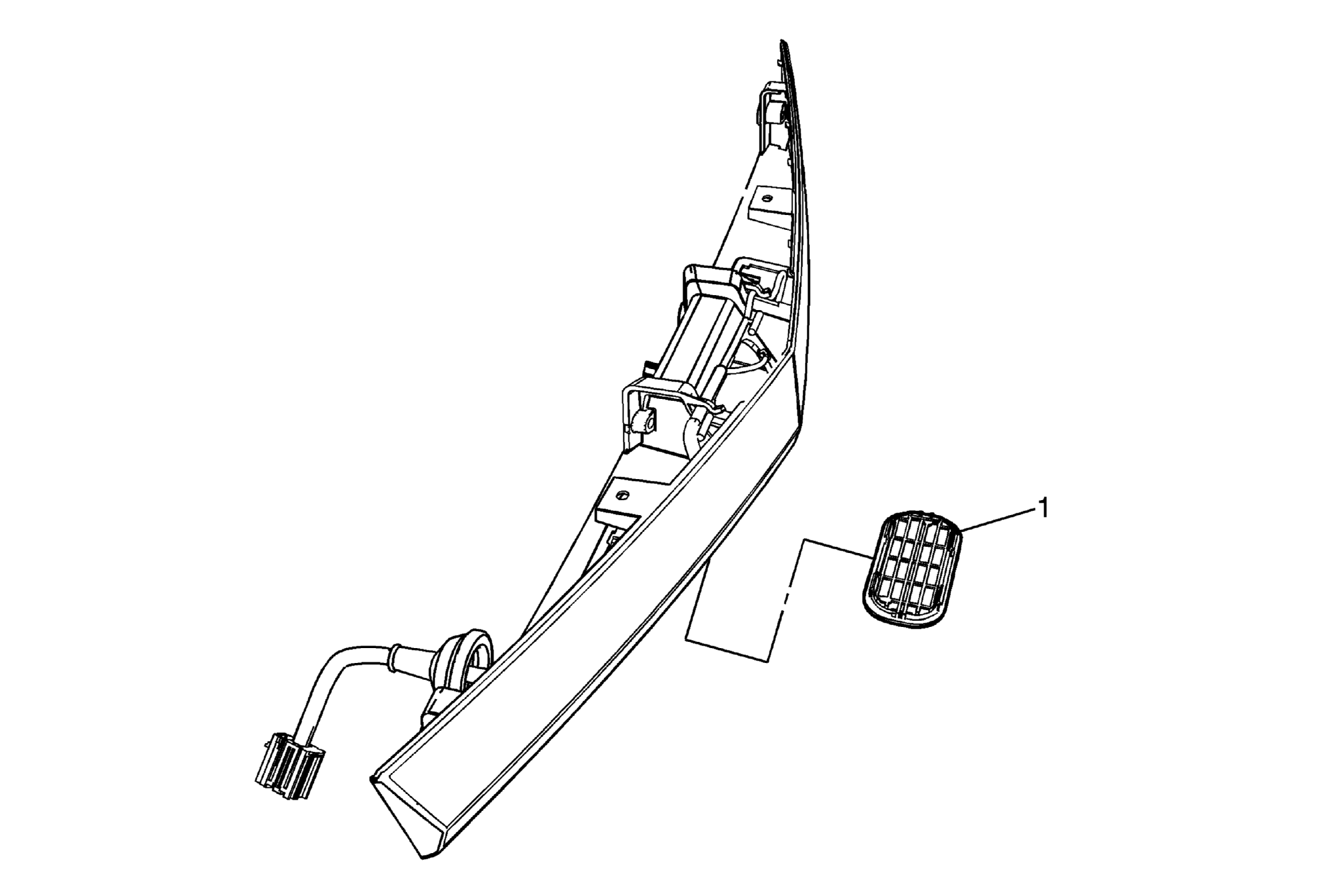

Fig 1: Liftgate Release Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate center applique. Refer to Liftgate Center Applique Replacement .
1	Liftgate Release Switch Procedure Disconnect the electrical harness from the applique. Depress the clip fingers and push outward to remove the outside handle from the applique.

Callout

Component Name

Preliminary Procedure
Remove the liftgate center applique. Refer to Liftgate Center Applique Replacement .

Liftgate Release Switch

Procedure

Disconnect the electrical harness from the applique.
Depress the clip fingers and push outward to remove the outside handle from the applique.
